What are the key features of the GE+ vAC Grid Emulator?

Key features include: • Bi-directional regenerative operation, allowing energy recovery back to the grid • Programmable voltage and frequency outputs • Low Total Harmonic Distortion (THD) for clean power delivery • Advanced grid simulation, including voltage dips, frequency variations, and phase imbalances • User-friendly touchscreen interface • Remote control via LAN, USB, RS-232, and GPIB

What power ratings are available for the GE+ vAC Grid Emulator?

The GE+ vAC is available in power ratings from 30kVA up to 630kVA, providing scalable solutions for laboratory, certification, and high-capacity production testing.

Can the GE+ vAC be used for renewable energy and inverter testing?

Yes, the GE+ vAC is specifically designed for testing solar inverters, wind inverters, energy storage systems, and grid-connected devices under real-world grid scenarios, including transient and fault conditions.

Is the GE+ vAC capable of energy regeneration?

Yes, the GE+ vAC features full regenerative capability, allowing recovered energy from the Device Under Test (DUT) to be fed back to the grid, reducing operational costs and energy consumption during testing.

What types of protections are included in the GE+ vAC Grid Emulator?

The GE+ vAC includes over-voltage, over-current, over-power, and over-temperature protection, ensuring safe and reliable operation during extended and demanding testing.

GE+ vAC Bi-Directional Regenerative Grid Emulator

Regenerative AC Grid Simulator

GE+ vAC

GE+ vAC is a 4Q programmable AC Voltage Source designed to create both stable and distorted AC grids with a predefined IEC testing software. This cost-competitive Bidirectional and Regenerative solution allows Independent phase configuration of: voltage rms, phase angle, frequency and harmonics. It is a device suitable to perform AC testing in Applications for Industry and Education, Renewable Energy Sources, Smartgrids, IEC Testing, EV and EVSE and, PV Inverter Testing, Power HIL and, in general, grid connected devices.

Featured Benefits

Efficiency and Flexibility
Harmonics Generation
AC only
Smooth Integration
High-Resolution and Dynamics

Main Applications

Electromobility
Smart Grids
IEC Testing
Photovoltaic
Academical & Industrial Test

Local Interface

Analogue and Digital 10 ports
The isolated digital and analogue inputs/outputs permit the connection of the unit to External Controllers and Power Hardware in the Loop systems (option).

4.3” Touchscreen
Allows the local parameterization and command of the device, configuration of the communications link, plots the main signals and enables the local datalogging.

Safety First
The units integrate a local Emergency Stop pushbutton and two signals (input+ output) to be connected to the laboratory interlock system. Additionally, the digital outputs can be interfaced to safety tower lights.

Master/Slave
ePLUS is a modular platform enabling the master/slave connection of units with equal power.

Options

Galvanic Isolation
Three channel mode: allows different operation mode start/stop/reset per channel (included in all models from 7.5 to 60, both included)
30kHz Switching Frequency: only available far models 15 (derated to 7.5kW), 20 (derated to 7.5kW) and 30 (derated to 10kW)
Isolation monitor (advised for IT systems)
Low voltage ripple capacitance
High Frequency 360 - 900 Hz
Anti-islanding monitor (only advised in net injection to the grid and following local regulations)
High Voltage (HV): voltage up to 295Vrms phase-neutral in AC up to 800V in DC

RS485
Predefined Tests: LVRT, IEC 61000-4-11, 4-13, 4-14, 4-28 (consult us for specific Test)
External gateway for RS232, CAN and others (consult us for specific gateway)

Models

GE+ vAC

Reference	AC Power Rated	AC Current Rated RMS 3 channels / 1 channel	DC Power Rated	DC Current Rated RMS 3 channels / 1 channel	Weight (kg)	Dimensions DxWxH (mm)
GE+ 7.5 vAC	7.5 kW	11 A / 33A	-	-	155 kg	770 x 450 x 1100 mm
GE+ 10 vAC	10 kW	15 A / 45 A	-	-	155 kg	770 x 450 x 1100 mm
GE+ 15 vAC	15 kW	22 A / 66 A	-	-	155 kg	770 x 450 x 1100 mm
GE+ 20 vAC	20 kW	29 A / 87 A	-	-	155 kg	770 x 450 x 1100 mm
GE+ 30 vAC	27 kW	40 A / 120 A	-	-	155 kg	770 x 450 x 1100 mm
GE+ 40 vAC	40 kW	58 A / 174 A	-	-	200 kg	770 x 450 x 1100 mm
GE+ 50 vAC	50 kW	73 A / 219 A	-	-	200 kg	770 x 450 x 1100 mm
GE+ 60 vAC	54 kW	80 A / 240 A	-	-	200 kg	770 x 450 x 1100 mm
GE+ 80 vAC	80 kW	116 A / -	-	-	320 kg	870 x 590 x 1320 mm
GE+ 100 vAC	100 kW	145 A / -	-	-	320 kg	870 x 590 x 1320 mm
GE+ 120 vAC	108 kW	157 A / -	-	-	320 kg	870 x 590 x 1320 mm
GE+ 160 vAC	145 kW	211 A / -	-	-	680 kg	850 x 900 x 2000 mm
GE+ 200 vAC	160 kW	232 A / -	-	-	680 kg	850 x 900 x 2000 mm

Software

The user interface used by CINERGIA devices has been developed by our R&D team, to offer total control of the device, with a comfortable and intuitive design. This allows us to take full advantage of the capabilities of the device, as well as the programming and execution of standardized or self-created tests.

GE Modes

AC Operation

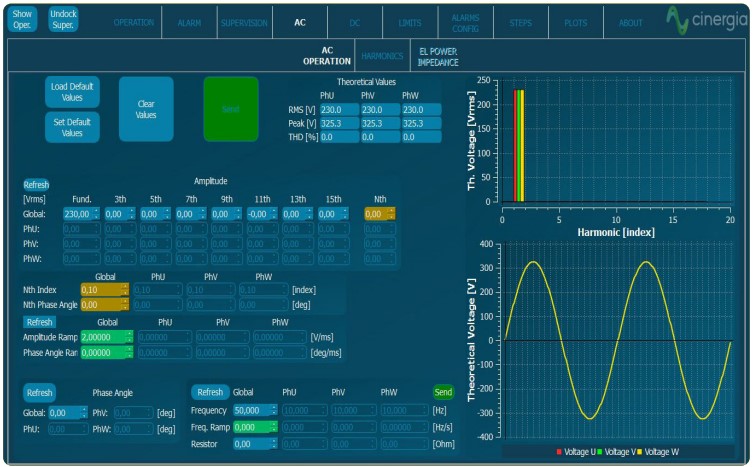

From this panel, the user can set all AC parameters. Each phase can be independently configured: RMS current magnitude, phase delay, harmonics content, free-frequency harmonic and transition ramps. A plot shows the expected real-time waveform, the FFT representation and the numeric data: RMS, peak, CF and THD.

Harmonics

The device can control simultaneously the magnitude of the first 15 harmonics and one free harmonic per phase. The free one allows the generation of sub-harmonics, inter-harmonics and high frequency harmonics up to the 50th, setting both the magnitude and phase delay.

Parallel Mode

The device can be controlled in parallel mode where all phases are short-circuited internally. This mode it’s suitable for single-phase applications. To increase the total power of the solution, the device can be connected in parallel* with multiple devices.

*For this connection contact us.

AC

Steps Mode

One of the most remarkable novelties of the new software is the steps functionality. Step test files are saved and executed by the DSP allowing deterministic timing with a resolution of 66µs. The user gains access to all registers of the device to create complex test sequences which run directly in the converter without the need of an external computer.

Disturbance Generation

The steps mode includes predefined easy-to-use test panels. The AC faults panel is a powerful yet intuitive editor which allows generating and configuring flicker. Specific profiles can be saved in .csv files, modified, and reused by importing an existing one.

IEC Testing

The last version of software includes a library supporting IEC standard for pre-compliance tests. The profiles defined in the standards are preloaded in the software for a user friendly execution and edition. Currently the following standards are available:

- IEC61000-4/11 - IEC61000-4/13

- IEC61000-4/14 - IEC61000-4/28

*It is mainly intended for pre-compliance testing. Contact us for futher information.
