ADG-P Programmable DC Power Supply

DC Power Supply Featuring High Power, High Voltage, and Programmable Power

High Power Programmable DC Power Supply

ADG-P series is a programmable DC power supply with high power density and high output power, offering great response time, high accuracy, and a multitude of output voltage and current combinations for a variety of versatile applications.

Featured Benefits
  • 30kW-100kW High Capacity
  • 2000V Maximum Output Voltage (Single Unit)
  • ≦0.1% ~ 0.2% Low Ripple & Noise using
  • ≦4mS Fast Transient Response
  • 2500A Maximum Output Current (Single Unit)
  • >90% High Efficiency
ADG P - Programmable DC Power Supply
Applications
  • Home Appliance
  • Laboratory/Certification Bureau
  • Industrial Power Supply
  • Electric Vehicles
  • IT / SMT Production Line
  • Renewable Energy
  • Transportation
  • Motor & Compressor
  • Medical Industry
  • Aerospace & Defense
  • Communication Industry
Specifications
  • Output Power: 4kW, 8kW and 12kW.
  • Output Current: 0~75A or 0~150A (with parallel operation).
  • Output Voltage: up to 1000V.
  • 5” touch screen and rotary knob control.
  • Wide range of input voltage: 187~264Vac (1 or 3 phase) or 340~460V (3 phase 4 wires Y connection).
  • High power density with only 3U for 12kW.
  • Easy master/slave parallel operation.
  • CV / CC / CP modes.
  • Remote sensing feature for line drop compensation.
  • Built-in programmable feature with total 5 groups and 99 sequences to set up voltage, current and time.
  • Remote control software available.
  • CE and RoHS certified.
  • Complete protection features including OVP, OCP, OPP, input OVP/UVP and OTP.
Information
  • User-Friendly HMI
  • Built-in Voltage/Current
  • Programmable
  • Function
  • Technically Advanced Performance
  • Varity of Applications
  • High Stability and Simple Wiring
  • Easy Remote Control Set Up
  • Screen Lock Password Function
  • EV Motor Testing Application Case

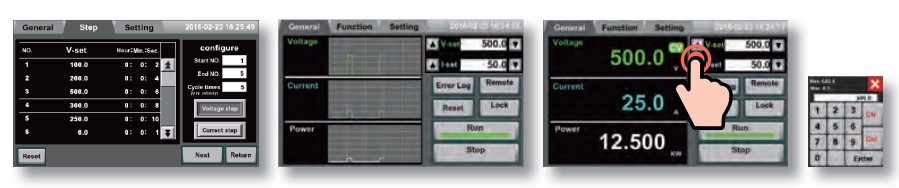

User-Friendly HMI


 ADG-P series has an intuitive touch screen HMI for easy operation and data display. Users also can easily set up voltage or current variation simulations through the built-in programmable functions in the touch screen.

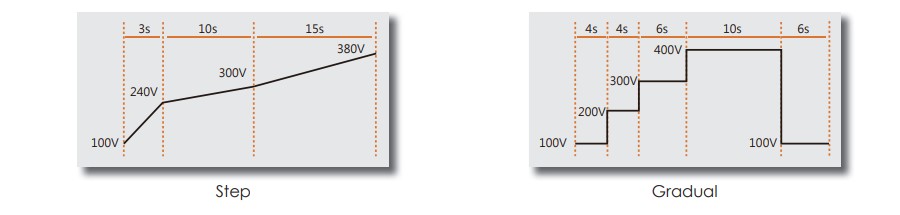

Built-in Voltage/
Current
Programmable
Function


Users can not only realize remote programming through the remote interface, but can also set the voltage / current stepwise or continuously through the built-in STEP and Gradual modes of the ADG-P series. Simulation of various power conditions can be achieved without further programming. It is ideal for performance testing like voltage variation test,ON/OFF test,aging test etc. More customized power curve simulations are also available.

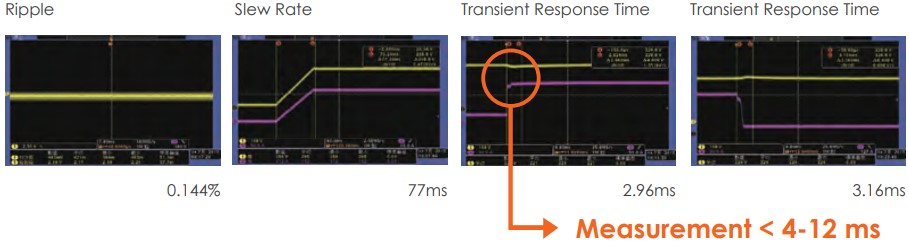

Technically
Advanced
Performance


G-P series has the industry leading performance on ripple, response time, and voltage regulation, which make it an ideal DC power supply for all kinds of testing.

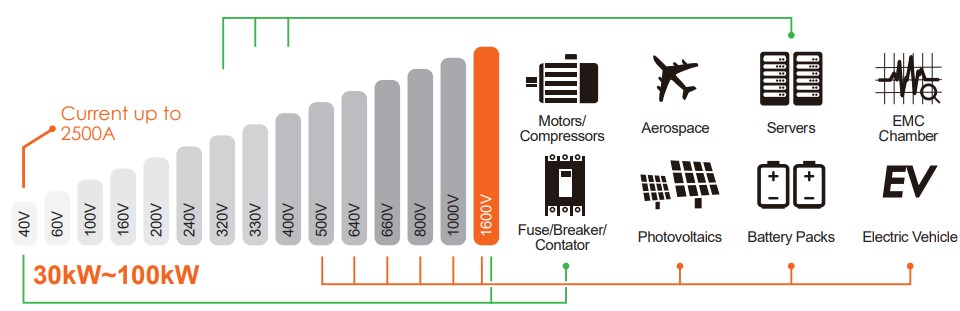

Varity of Applications


ADG-P series has many output voltage ranges suitable for different market applications. Models over 640V output voltage are applicable for renewable energy, EV, and lithium battery industries. When it comes to circuit breakers, contactors or fuses that require high voltage or current, models with 2000A or 1600V can fulfill the power demands of this type of component testing. The 400V or 320V models can be applied to server related applications due to the increased needs for high voltage DC in data centers

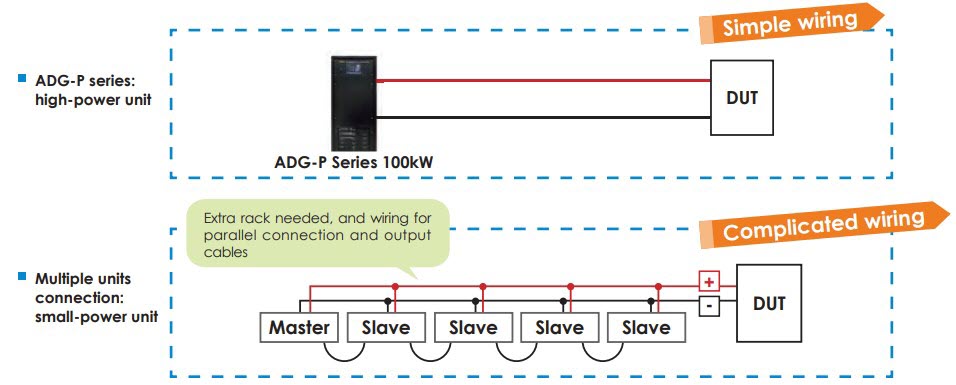

High Stability
and Simple
Wiring


Compared with the DC power supplies which attain high power by parallel connection, the single unit of the ADG-P series is up to 100kW. Without communication between multi-units, users can reduce the risk of interference from parallel connection signals. Moreover, single unit operation features in simple wiring and easy mobility, bringing high stability and easy maintenance.

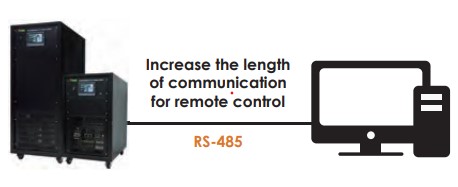

Easy Remote Control Set Up


ADG-P series has an intuitive touch screen HMI for easy operation and data display. Users also can easily set up voltage or current variation simulations through the built-in programmable functions in the touch screen.

Screen Lock Password Function

In order to prevent the operator from changing the set parameters by mistake, the new Screen Lock Password function is added on ADG-P series, so that the operator can only perform the output of the device, and only authorized personnel has the password to unlock the screen and edit parameters.

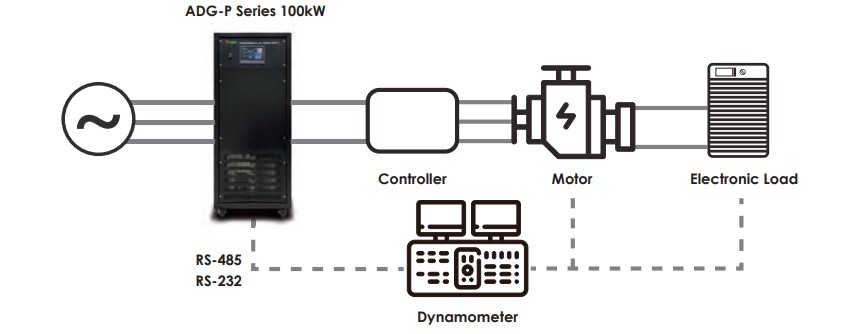

EV Motor Testing Application Case


Alternative fuel vehicle industries have grown rapidly in recent years. The unique technical structure of alternative fuel vehicles makes them very different from traditional vehicle tests. Electric motors become the power engines of EV and HEV in replacement of traditional engines. Therefore, testing and verification for motor system becomes significant. The driving of motor and motor controlling requires accurate programmable DC supply to simulate output voltage of different batteries, and also require high-power DC supply. Preen’s ADG-P series is the ideal DC power supply for the testing system.

Documents

User Manuals and Datasheets

Need to compare products?

Single-unit capacity up to 100kW

Capicity expansion by parallel connection.

DC Power Supplies - Intepro Systems
EV Motor Testing

Ideal for EV Motor Testing

Meet high voltage requirement for renewable energy.

Output voltage up to 2000V

More than 16 voltage segments for selection.

ADG - DC Power Supplies - Intepro Systems

Request a Quote Today

ADG-L programmable DC power supply

FAQ

The ADG P is a high power, programmable DC power supply series from Intepro/Preen, delivering between 30 kW and 100 kW per single unit with up to 1600 V and 2500 A output—ideal for EV, renewable energy, power electronics, battery, and component testing.
