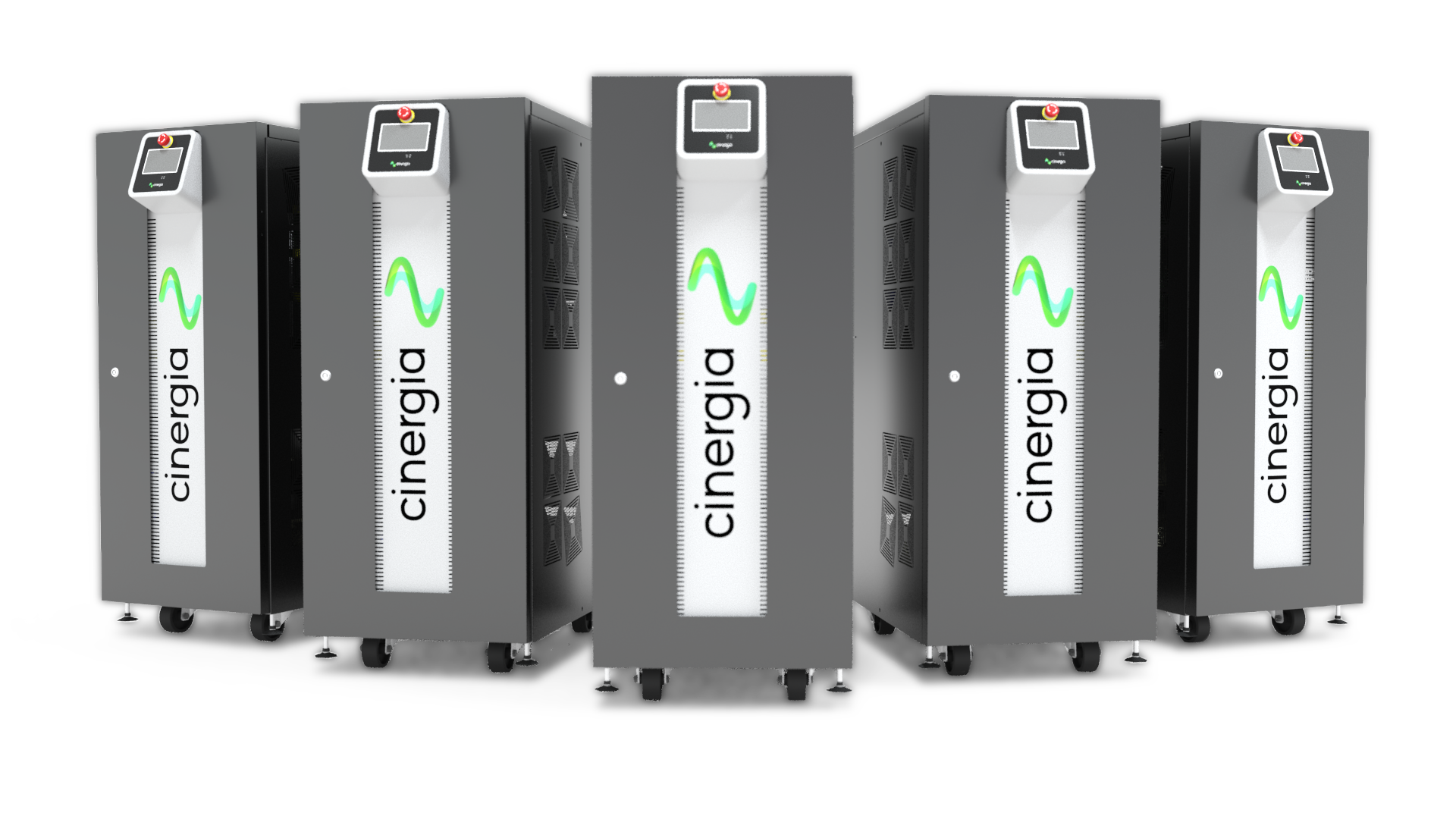

Electronic Load Equipment
Intepro Systems’ partnership with Cinergia brings the ultimate flexibility to electronic load selection for your demanding application. Due to its regenerative properties, Intepro Systems’ electronic loads are ideal for various applications, including battery and EV testing. The added ability of these instruments to load both AC and DC power allows them to be a one-unit solution. These high-power solutions are applicable in almost every industry, including green energy, automotive, and inverter testing.
Intepro Systems and Cinergia
The Models
- Cinergia B2c+
- Cinergia EL+
- Cinergia GE&EL+
Product Table
Cinergia B2C+ | Cinergia EL+ | Cinergia GE&EL+ | |
|---|---|---|---|
Max Power Rating, Single Chasis | 160kW | 160kW | 160kW |
Form Factor | Cabinet | Cabinet | Cabinet |
Max Paralleled Power | >1MW | >1MW | >1MW |
AC Connection | 3 Phase 480V | 3 Phase 480V | 3 Phase 480V |
Regenerative Efficiency | Up to 92%* | Up to 92%* | Up to 92%* |
Max Voltage | 800V or 1500V** | DC: 800V or 1500V** AC: 400V peak, 480V rmsL-N | DC: 800V or 1500V** AC: 400V peak, 480V rmsL-N |
Max Current, Single Chassis | 555A | 232Arms / 555ADC | 232Arms / 555ADC |
Functionality | Source & Sink DC Only | Sink AC or AC+DC | Source & Sink AC or AC+DC |
Included Interface (inquire for optional interfaces) | USB/Analog/Ethernet | USB/Analog/Ethernet | USB/Analog/Ethernet |
HiL/PHiL | Option | Option | Option |
Overated Capability | Up to 200% | Up to 200% | Up to 200% |
4-Quadrant (subject to derating) | Yes | Yes | Yes |
Display | 4.3” Touch Screen | 4.3” Touch Screen | 4.3” Touch Screen |
Function Generator | Yes | Yes | Yes |
LabView VIs/SCPI | Yes | Yes | Yes |
Number of Channels/Phases | 3 | 3 | 3 |
*Model Specific, please consult datasheet for more information (document linked above)
**By using 2 units in Series
