PowerStar Test Executive Software

Test executive software that runs the rack — sequences, limit trees and operator flows built without writing code, with more than twenty years in production test.

PowerStar Test Executive Software — product photograph

Datasheets and documents

The software, as it runs

  • PowerStar test editor: the sequence tree on the left, step parameters and limits on the right

    The test tree. Steps, limits and flow are edited here, without writing code.

  • PowerStar operator screen showing a green PASS result after a completed sequence

    What the operator sees: one result, one color.

  • PowerStar oscilloscope capture step with the acquired waveform and limit lines

    A scope step captured inside the sequence, judged against limits.

  • PowerStar data-export dialog with per-driver output fields

    Data export per driver — results leave the rack in the format the line already uses.

  • PowerStar interactive control panel for an ATX power-supply unit under test

    Interactive control of a PSU under test, for debug and characterization.

  • PowerStar three-dimensional plot of a result set

    A result set plotted across a sweep.

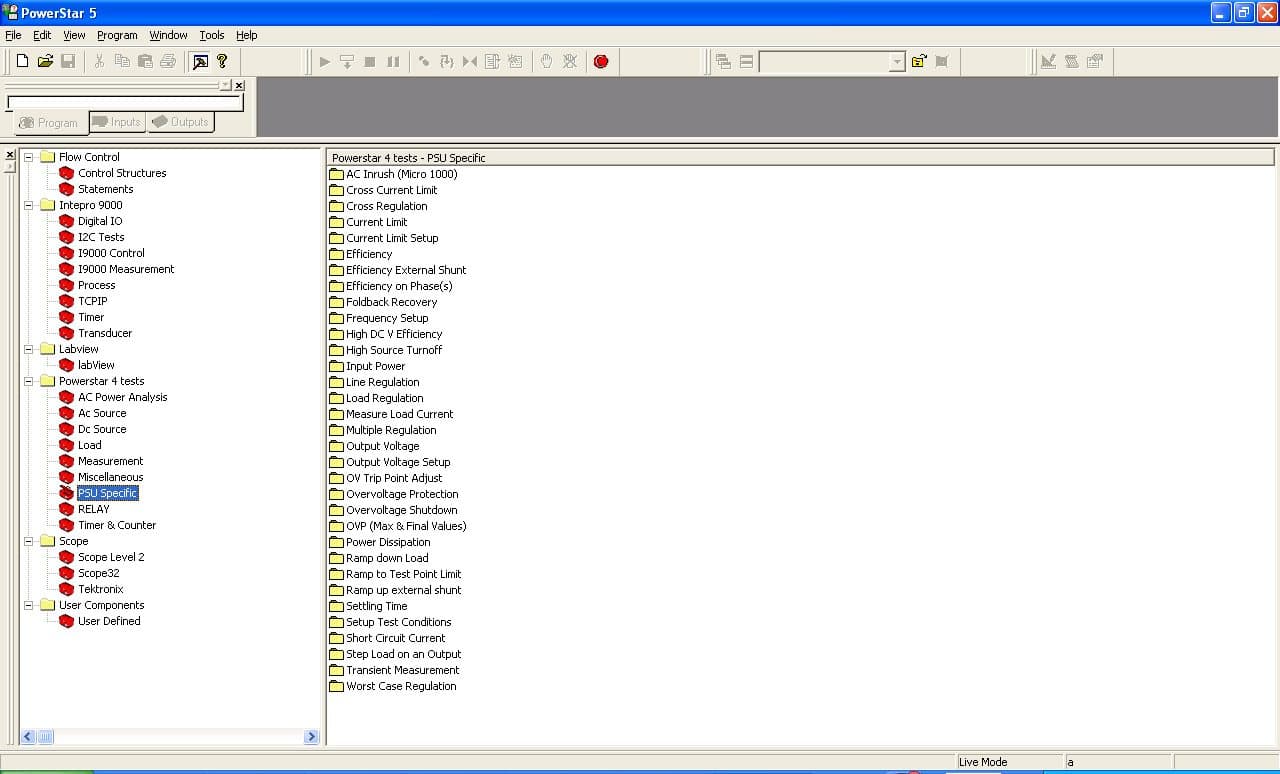

  • PowerStar measurement library: the list of built-in measurements and functions a test step can call

    The measurement library. A test step calls a named measurement rather than driving an instrument directly — which is what lets the same program survive a change of instrument.

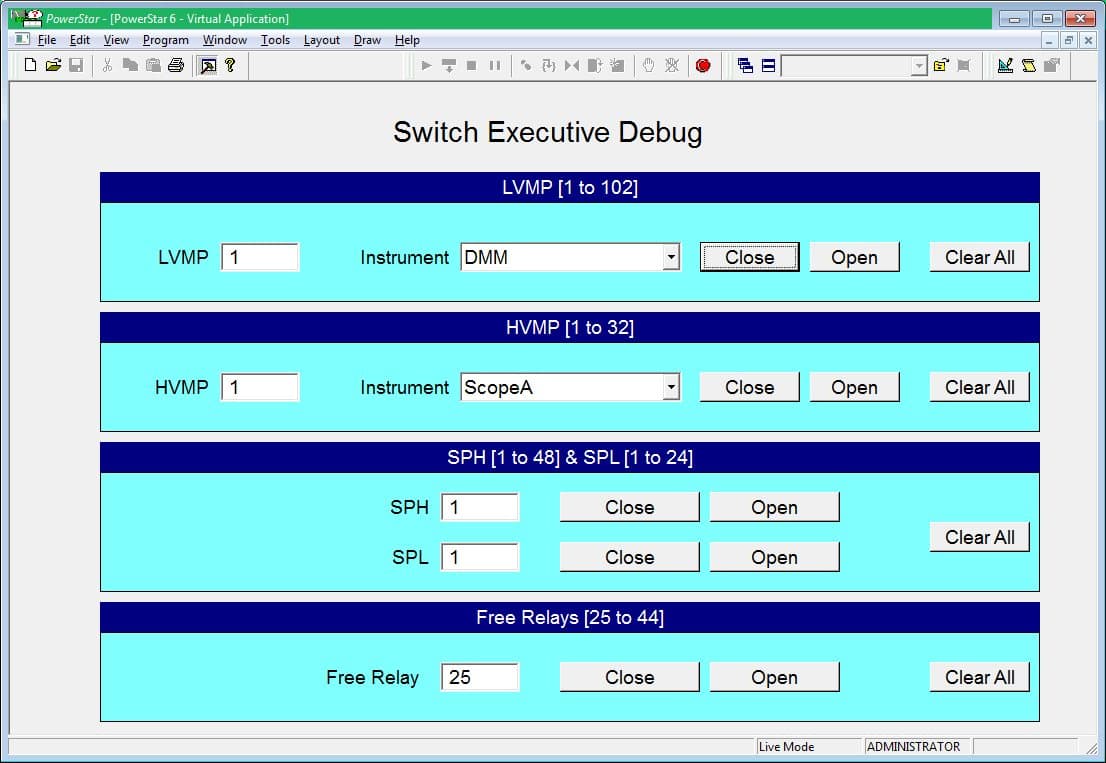

  • PowerStar switch executive debug screen, routing low- and high-voltage measurement points to a DMM and a scope

    Switch routing, debugged live. Measurement points are mapped to instruments — DMM, scope — and relays opened and closed one at a time. This is the layer that makes an open-architecture rack practical rather than theoretical.

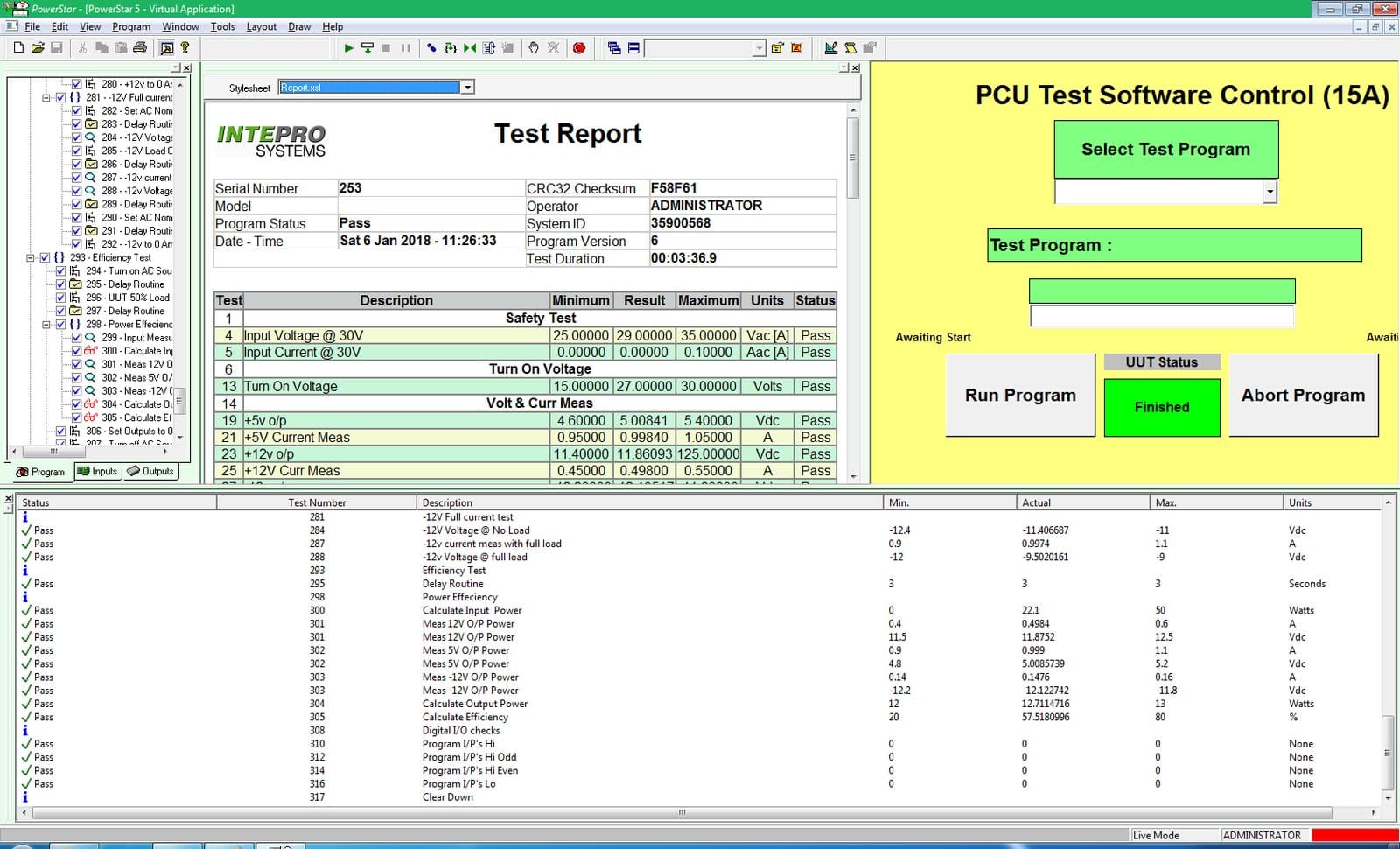

  • PowerStar operator control panel with test program selection, run and abort, beside a completed test report

    What the operator sees: select a program, run, abort — with the report building underneath. The engineer’s sequence editor and the operator’s panel are the same software.

  • Multi-station Intepro production test line with board fixtures and operator screens, running under PowerStar

    The other half of the picture: PowerStar is what the hardware runs. A multi-station production line, each bay with its own fixture and screen, sequenced from one test executive.

Capabilities

  • PowerStar 5/6 integrates LabView VIs as Dynamic Link Libraries into test programs and Virtual Applications
  • Parameters pass from PowerStar to a LabView VI as a constant or an expression; LabView indicators return to PowerStar, logged as a result or exported to a variable
  • Three DLL execution paths: the Execute DLL test, a Virtual Application (VA), or a user VBA test
  • Execute DLL test enumerates all exported functions in a selected DLL and can log the function return value as the test result
  • DLL functions callable from Virtual Application and VBA test code via Declare Function statements
  • Test programs run in a separate thread from the PowerStar UI and Virtual Applications
  • Supplied LVRTEInit.vi, built as a DLL in the PowerStar Bin folder, initializes the LabView runtime engine in the main PowerStar thread
  • LabView front panels can display interactively from a DLL when the VI window appearance is set to Dialog
