Delta SM800 DC Power Supply

800W DC Power Supplies

Delta SM800 800W DC Power Supplies

Introducing Intepro's latest offering, the SM800 Series 800W DC Power Supplies by Delta. Featuring flexible output with constant power characteristics, the Delta SM800 offers long life at full power and excellent dynamic response to load changes.

Featured Benefits
  • Designed for long life at full power
  • Excellent dynamic response to load changes
  • Protected against all overload and short circuit conditions
  • EMC surpasses CE requirements: low emission und high immunity

Delta SM800 DC Power Supply
Models Table
Models Voltage range Current range
SM 7.5-80 0 - 7.5 V 0 - 80 A
SM 18-50 0 - 18 V 0 - 50 A

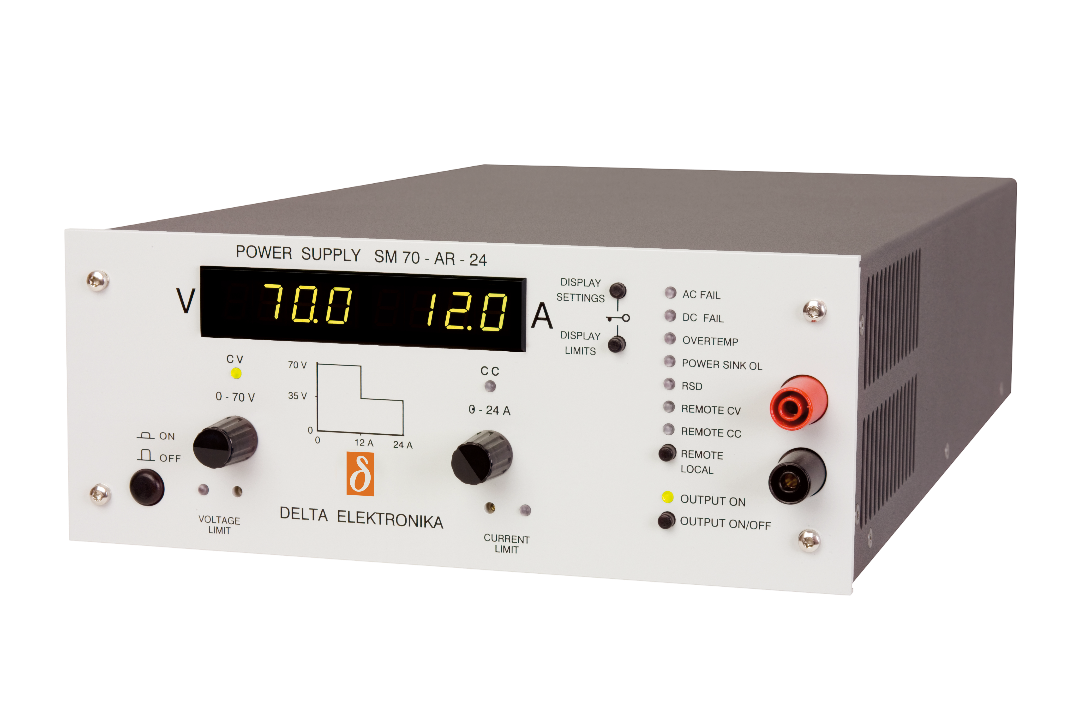

SM 70-AR-24
Autoranging output
0 - 35 V
0 - 70 V
0 - 24 A
0 - 12 A
SM 400-AR-4
Autoranging output
0 - 200 V
0 - 400 V
0 - 4 A
0 - 2 A
Functionalities
  • Master/Slave parallel and series operation with voltage and current sharing
  • Stacking is allowed, space between units is not required
  • High power system configuration from multiple units
  • 19" rack mounting or laboratory use (feet included)
  • Remote sensing
  • Interlock
Typical Applications
  • Accurate current sources
  • Electronic circuit design
  • Component device testing
  • ATE in industrial production lines
  • Automotive battery simulations
  • Controlled battery (dis)charging
  • Lasers
  • Driving PWM-Controlled DC motors
  • Medical research equipment
  • Aerospace and military equipment
Available Options

inreased-output-power

Increased Output Power


The conservatively rated unit allows to deliver extra output with the same reliability. At some derating, either the maximum output voltage or the maximum output current can be increased by about 10%.

Order Code:

  • P069


high-speed-programming

High Speed Programming


A 10 to 20 times higher programming speed (down to 0.2ms rise time at full load) and lower output capacitance.* Excellent for laser applications, test systems or as current source with low parallel capacitance as used in plasma chambers.

Order Code:

  • SM 7.5-80 P250
  • SM 18-50 P251
  • SM 70-AR-24 P252
  • SM400-AR-4 P253


bi-directional-two-quadrant-output

Two-Quadrant Output Power Sink


Two quadrant operation maintains the DC output voltage constant regardless the output power is positive or negative.* Ideal for PWM-speed controlled DC-Motors and ATE systems.

Order Code:

  • SM 7.5-80 P245
  • SM 18-50 P246
  • SM 70-AR-24 P247
  • SM400-AR-4 P248


sequencer

Sequencer


Arbitrary Waveform generator or standalone automation. The sequencer is integrated in the Ethernet controller.

Order Code:

  • P256


digital-cv-and-cc-settings

Digital CV- and CC-Settings


Reliable, long-life digital encoders can be implemented at the front panel. Includes total front panel lock (also for CV-/CC-knobs) and a coarse or fine pitch adjustment depending on the turning speed.

Order Code:

  • P236


secured-voltage-and-current-settings

Secured Voltage and Current Settings


For maximum security, the CV/CC settings can be adjusted with a screwdriver only and are protected with a plastic cap from accidental adjusting.

Order Code:

  • P001


software-control-and-interface

Software Control and Interfaces


Interfaces to be installed by factory.

Order Code:

  • Ethernet controller (including sequencer) - P256
  • ISO AMP Card - isolated analog - P249
  • RS232 controller - P254
  • IEEE488 controller - P255
  • PROFIBUS controller - P271
  • CANBUS controller - P272


Rack Mounting adapter

19" Rack Mounting adapter


The 19" mounting adapters make it possible to position one or two units side by side in a 19" rack.

Order Code:

  • RA19 - 1SM800 (for 1unit)
  • RA19 - 2SM800 (for 2units)


Front Power Output

Front Power Output


Bind posts at the front panel instead of at the rear panel.

Order Code:

  • SM 7.5-80 n.a.
  • SM 18-50 P257
  • SM 70-AR-24 P258
  • SM400-AR-4 P259

Documents

User Manuals and Datasheets

Need to compare products?

Request a Quote Today

EST150 Programmable DC Power Supply

FAQ

The SM800 is an 800W programmable DC power supply from Delta Elektronika, distributed by Intepro Systems. It offers flexible output with constant power characteristics, ensuring long life at full power and excellent dynamic response to load changes. Designed for both laboratory and industrial applications, it provides reliable and precise power delivery.
