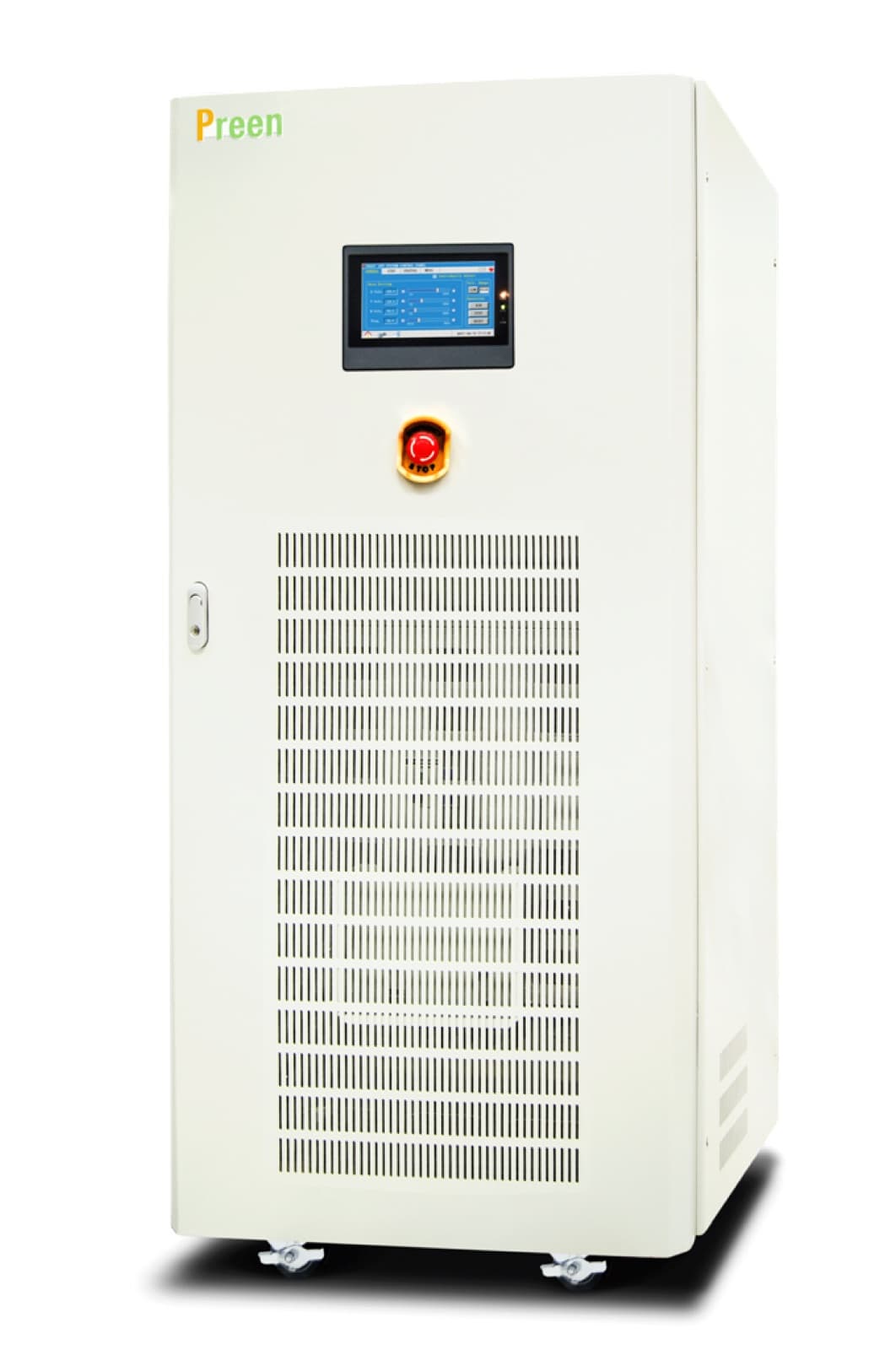

AFV-P AC Source
Programmable AC/DC Output Power Source
Intepro’s AFV-P Series is a programmable AC/DC output power source with precision measurement and control
This compact power source comes in four power levels, 600VA, 1250VA, 2500VA and 5000VA, providing clean power with distortion less than 0.3% at 40-100Hz. The AFV-P series delivers output voltage from 0 to 310VAC and frequency from 40 to 500Hz or 15 to 1000Hz with the high frequency option. It is ideal for commercial, defense and aerospace test applications from design verification, quality assurance, ATEs. The AFV-P Graphical Users Interface software makes it easy to setup complex testing of the AC input to the UUT.
The internal memory stores up to 1200 transients in 50 registers. Transient generation functions provide simulation of voltage variations, surges, drops and frequency disturbances. With the state-of-the-art PWM technology, the AFV-P series is capable of delivering up to 4.5 times of peak current (crest factor) from its max rated current that makes it ideal for switching power supply test. User defined Start and End phase angle is available from 0 to 360 degrees.
The AFV-P series measurement features include rms voltage, rms current, true power, apparent power, power factor, crest factor and reactive power. Its 5” touch screen with rotary knob allows quick adjustments and configurations of voltage, current, and frequency. Users can remotely control the AC source via standard interfaces of USB, RS232/RS485, LAN or optional GPIB and analog control. Free control software and LabVIEW driver are available for easy programming and remote control.
Features
Key Features of the AFV-P AC Source products
Compact & High Power Density
2U: 600VA / 1250VA / 2500VA; 5U: 5000VA
Ideal for Inrush Current
Capable of delivering up to 4.5 times of peak current
Low Distortion (THD)
THD is less than 0.3% when output is less than 100Hz
AC Source with DC Output
Extend the applications to DC type testing
Wide Output Voltage & Frequency
0-310V L-N; 15-1000Hz
Current Fold back Feature
Output current maintains constant based on the load while output voltage varies
AFV-P
Intuitive Touch Panel
Users can quickly select the parameters via 5” touch panel or rotary knob, which provides for easy operation and measurement display.
AFV-P Series
Sweep & Ramp Test
The AFV-P Series offers an easy and convenient method to execute a single step or continuous output changes. The sweep function is ideal for voltage and frequency variation tests. The response time of voltage and frequency changes are within one cycle. Users can also use the ramp function to adjust slew rate o voltage and frequency changes. The ramp function can also effectively reduce the inrush current during motor startup. There are up to 50 memory locations can be run sequentially to sequence 1200 steps as each memory location has 24 steps for the user to set up.
Extended
Transient Generation
Transient generation is an extended feature that provides the users an easy setup for power line disturbance simulation.
Common waveform disturbances such as surge, sag, spikes, and dropouts can be generated for applications like immunity test.
AFV-P
Start/End Angle & High Peak Current for Inrush Current
AFV-P Series is capable of providing high output peak current (max. 4.5 peak/rms), and this feature makes it ideal to handle inrush currents required for motor testing.
In rush Current for 90° Start Angle
90° Start Angle
90° End Angle
Software
Control Software
AFV-P Series provides control software and a LabVIEW driver that allows users to easily setup remote control for the power source without further need of programming
Offering Superior Technology & Support
Our Request a Quote system automatically gets sent to our sales team, who review your request and find the right person to answer your questions about our AC Sources, DC Power Supplies, or ATE Test Systems, or other software or equipment we offer that you have questions about
AFV-P Series
Fast Slew Rate
For tests like sags, surges, dropouts, or spikes, slew rate is a critical factor. AFV-P Series is a high performance AC source that has a high slew rate of less than 300μs from 0~90% output voltage. It allows users to do pre-compliance tests such as IEC-61000-4-11 or MIL-STD-704F.
