Delta SM6000 6kW DC Power Supplies

6kW DC Power Supplies

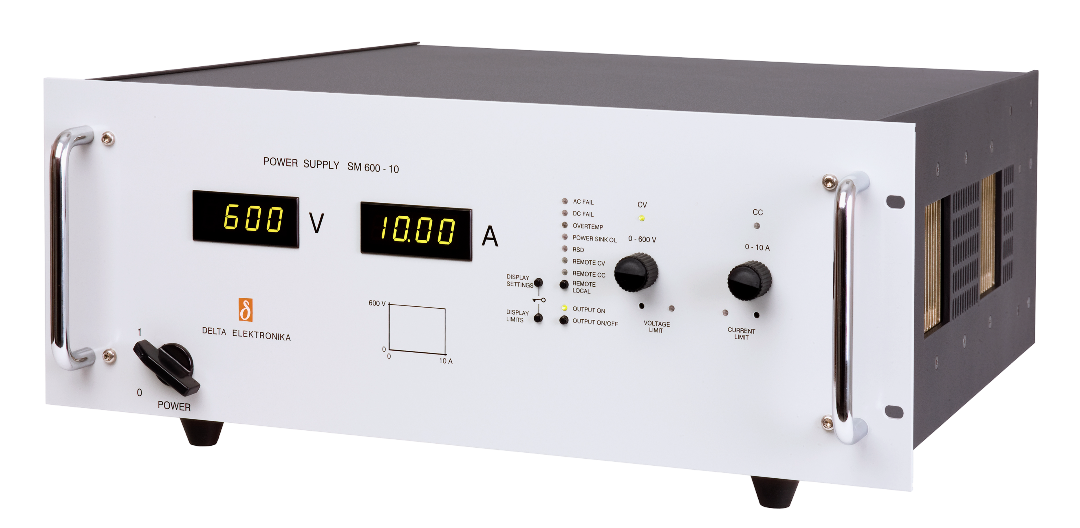

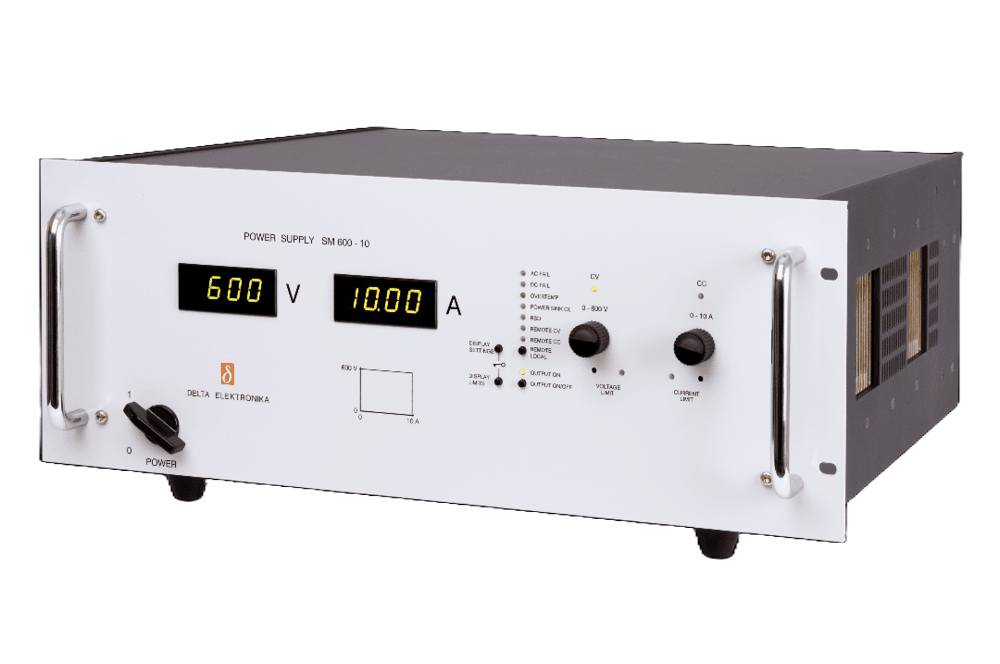

Delta SM6000 6kW DC Power Supplies

Introducing Intepro's latest offering, the SM6000 Series 6kW DC Power Supplies by Delta. Featuring flexible output with constant power characteristics, the Delta SM6000 offers long life at full power and excellent dynamic response to load changes

Featured Benefits
  • Designed for long life at full power
  • Excellent dynamic response to load changes
  • Protected against all overload and short circuit conditions
  • EMC surpasses CE requirements: low emission und high immunity
  • Low audible noise: fans are temperature controlled

SM6000 6kW DC Power Supplies
Functionalities
  • Master/Slave parallel and series operation with voltage and current sharing
  • Stacking is allowed, space between units is not required
  • High power system configuration from multiple units
  • 19" rack mounting or laboratory use (feet included)
  • Remote sensing
  • Interlock

Typical Applications

  • Solar inverter testing, PV-Simulation
  • Hybrid Car testing systems
  • ATE in industrial production lines
  • Plasma chambers
  • Automotive battery simulations
  • Controlled battery (dis)charging
  • Lasers
  • Sustainable energy
  • Driving PWM-Controlled DC motors
  • Accurate current sources
  • Aerospace and military equipment

Available Options


high-voltage-isolation

Inreased Output Power

The conservatively rated unit allows to deliver extra output with the same reliability. At some derating, either the maximum output voltage or the maximum output current can be increased by about 10%.


Order Code:

  • P069


high-voltage-isolation

High Speed Programming

A 10 to 20 times higher programming speed (down to 0.4ms rise time at full load) and lower output capacitance¹). Excellent for laser applications, test systems or as current source with low parallel capacitance as used in plasma chambers.


Order Code:

  • SM 15-400 P166 – SM30-200 P167
  • SM 45-140 P168 – SM60-100 P169
  • SM 70-90 P170 – SM120-50 P171
  • SM 300-20 P172 – SM600-10 P270


high-voltage-isolation

Two-Quadrant Output Power Sink

Two quadrant operation maintains the DC output voltage constant regardless the output power is positive or negative¹). Ideal for PWM-speed controlled DC-Motors and ATE systems.


Order Code:

  • SM 15-400 P230 – SM30-200 P231
  • SM 45-140 P232 – SM60-100 P233
  • SM 70-90 P234


sequencer

Sequencer

Arbitrary Waveform generator or standalone automation. The sequencer is integrated in the Ethernet controller.


Order Code:

  • P157


digital-cv-and-cc-settings

Digital CV- and CC-Settings

Reliable, long-life digital encoders can be implemented at the front panel. Includes total front panel lock (also for CV- / CC-knobs) and a coarse or fine pitch adjustment depending on the turning speed. Is standard on SM300-20 and SM600-10.


Order Code:

  • P220


secured-voltage-and-current-settings

Secured Voltage and Current Settings

For maximum security, the CV/CC settings can be adjusted with a screwdriver only and are protected with a plastic cap from accidental adjusting. SM300-20, SM600-10 and units with option P220 already have secured settings.


Order Code:

  • P001


Software Control and Interfaces

Software Control and Interfaces

Interfaces to be installed by factory²).


Order Code:

  • ISO AMP Card - isolated analog - P154³)
  • RS232 controller - P155
  • IEEE488 controller - P156
  • Ethernet controller ( including sequencer) - P157

Documents

User Manuals and Datasheets

Need to compare products?

SM6000 - Series 6000W DC POWER SUPPLIES

Models Voltage range Current range
SM 15-400 0 - 15 V 0 - 400 A
SM 30-200 0 - 30 V 0 - 200 A
SM 45-140 0 - 45 V 0 - 140 A
SM 60-100 0 - 60 V 0 - 100 A
SM 70-90 0 - 70 V 0 - 90 A
SM 120-50 0 - 120 V 0 - 50 A
SM 300-20 0 - 300 V 0 - 20 A
SM 600-10 0 - 600 V 0 - 10 A
Specifications SM 15-400 SM 30-200 SM 45-140 SM 60-100 SM 70-90 SM 120-50 SM 300-20 SM 600-10
DC Power terminals
voltage
current
0 - 15 V
0 - 400 A
0 - 30 V
0 - 200 A
0 - 45 V
0 - 140 A
0 - 60 V
0 - 100 A
0 - 70 V
0 - 90 A
0 - 120 V
0 - 50 A
0 - 300 V
0 - 20 A
0 - 600 V
0 - 10 A
AC Input
1 or 3 phase, 48 - 62 Hz
rated voltage range
rated frequency
rated current
342-528 V
380-480 V
50 / 60 Hz
max 12.2A
current (400 V / 3 ph, full load)
power factor, 100%, 50% load
10.2 A
0.98, 0.97
10.2 A
0.98, 0.97
10.3 A
0.98, 0.97
10 A
0.98, 0.97
10 A
0.98, 0.97
9.9 A
0.98, 0.97
10 A
0.98, 0.97
10 A
0.98, 0.97
internal fuses 15 AT
standby input power (Vo=Io=0) 55 W 120 W 130 W
standby input power (Vo=Vmax) 110 W 120 W 130 W
Efficiency
400 V AC, 3 ph input, full load
87 % 89 % 90 % 89 % 89 % 89 % 89 % 89 %
Regulation
Load 0 - 100%
Line 342 - 457 V AC
2.5 mV
0.2 mV
5 mV
0.5 mV
5 mV
1 mV
5 mV
1 mV
5 mV
2 mV
8 mV
2 mV
15 mV
3 mV
20 mV
4 mV
Regulation
Load 0 - 100% (CC)
Line 342 - 457 V AC
24 mA
4 mA
12 mA
2 mA
9 mA
1.5 mA
6 mA
1 mA
5 mA
1 mA
3 mA
0.5 mA
1.2 mA
0.2 mA
1.0 mA
0.2 mA
Ripple + noise
rms (CV, BW=300 kHz)
p-p (CV, BW=20 MHz)
0.8 mV
8 mV
1 mV
10 mV
1.5 mV
10 mV
2 mV
10 mV
3 mV
25 mV
5 mV
50 mV
10 mV
100 mV
10 mV
100 mV
Ripple + noise
rms (CC, BW=300 kHz)
p-p (CC, BW=20 MHz)
100 mA
300 mA
30 mA
60 mA
8 mA
25 mA
3 mA
10 mA
3 mA
10 mA
2 mA
5 mA
2 mA
5 mA
2 mA
5 mA
Dimensions
front panel (h x w)
behind panel (h x w x d)
177 x 483 mm (19", 4U)
177 x 443 x 500 mm
Weight 27 kg

Request a Quote Today

EST150 Programmable DC Power Supply

FAQ

The SM6000 is a robust 6 kW programmable DC power supply from Delta Elektronika (via Intepro), designed for long-term continuous operation. It features constant-power output, excellent response to load changes, superior regulation, and low audible noise—ideal for lab and industrial environments
