ADG-L Programmable DC Power Supply

Renewable Energy

Programmable
DC Power Supply

High Output Voltage and High Power Density for Renewable Energy Applications

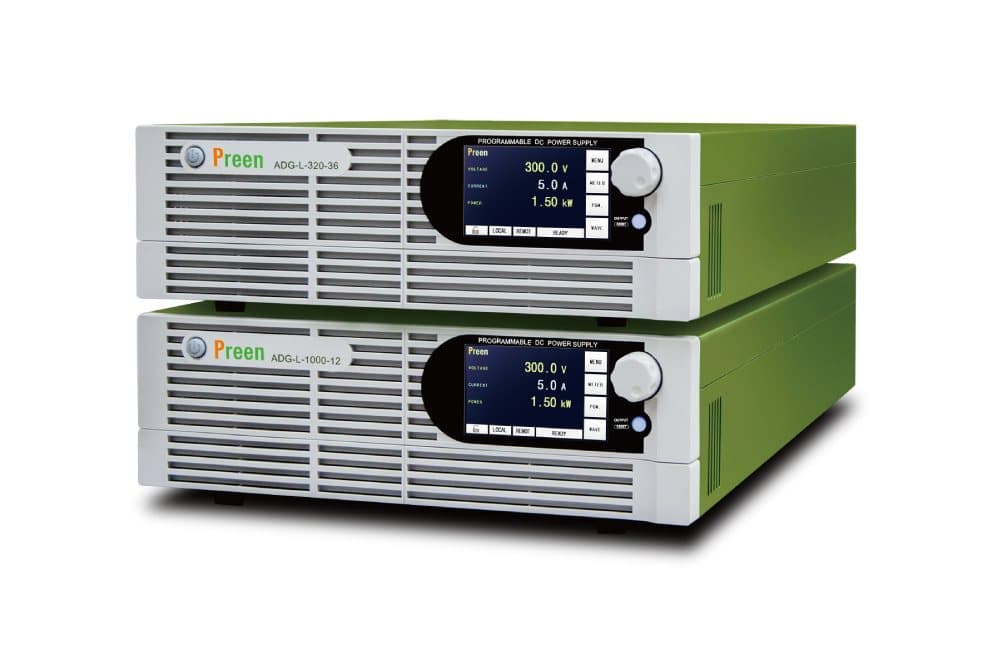

ADG-L Programmable DC Power Supply

Introducing our latest programmable DC power supply, the ADG-L Series, with 14 base models and multiple customizing options, three different output power, 4kW, 8 kW and 12 kW. Utilizing PWM technology, ADG-L delivers stable output and precise measurement. The ADG-L features high power density, low noise, and tight regulation. The combination of DSP and PWM technologies has enabled significant advances in stability and measurements. The ADG-L series includes fourteen models with 4kW, 8kW and 12kW maximum output powers and Auto Range models available to provide a higher output current at lower output voltage.

Features

Programmable Power

Flexible power up to 12kW

Flexible power up to 12kW

4kW, 8kW, and 12kW for a variety of power applications.
Auto-ranging DC Power

Auto-ranging DC Power

Comparing to conventional DC power supplies that provide the same rated current at all output voltage, the ADG-L's auto range models offer a wide operation region. It can generate a higher output current at lower output voltage , or a higher output voltage at lower output current. This feature is an ideal solution for both high current/low voltage and low voltage/high current DUT, and makes one unit to cover a wide range of applications to further save cost and space.
Wide Voltage and Current Range

Wide Voltage and Current Range

With up to 1000V output voltage and multiple Auto Range models , the ADG-L series covers a wide range of applications including electric vehicle , photovoltaic , battery , DC/DC converters and electronic products.
Application
and Tech Note
Application and Tech Note

Overview

High Power When You Need It

30kW-100kW

High Capacity

2000V

Maximum Output Voltage (Single Unit)

≦0.1% ~ 0.2%

Low Ripple & Noise

≦4mS

Fast Transient Response

2500A

Maximum Output Current (Single Unit)

>90%

High Efficiency


History

History of Excellence

Intepro Systems has been around for more than 30 years providing high quality ATE test stations, stand-alone units, and quality service that keeps your product testing going for years and years.
The DC Power Supply Built For Most Applications

Programmable Excellence

Intuitive Touchscreen and Rotary Knob

The ADG-L series employs 5" touch screen and rotary knob to provide intuitive and easyto-use control and display. Users can quickly access output settings, measurements, sequences and system configurations from the touch screen. Sophisticated sequences can not only be set from the PC, but also easily from the touchscreen.

Remote Sense Function

In many laboratories or factories, the DC power supply is located a certain distance away from the DUT, and this sometimes causes voltage drop due to the resistance of the wires.The ADG-L is equipped with remote sensing to compensate voltage drops and provide a stable output voltage,and it allows users to have the desired voltage appear at DUT.

High Power Density: 12kW in 3U

Employing PWM technology and DSP-based control , Preen’s ADG-L series DC power supply has 12kW available only in 3U package , and with parallel configuration , 24kW only has 6U height. The rackmount enclosure is designed to accommodate a wide range of applications , especially for automatic test systems and integrations.

Industry-Leading Performance

The ADG-L series is designed for low ripple, high accuracy and tight regulation for simulating different DC voltages. With fast transient response and rise time, the ADG-L DC sources are ideal to test DUT behavior to voltage sags, dropouts, ON/OFF tests and complex DC waveforms.

0.99 Input Power Factor

The ADG-L series is equipped with active Power Factor Corrector (PFC) to enhance input PF up to industry-leading 0.99, which helps reduce the interference on the grid.

Control Software Included

The ADG-L series can be controlled via the Preen Program to configure sophisticate sequences, save/recall STEPs , and generate test result reports. This intuitive control software makes remote programming no longer a difficult task.

Multiple Communication Interfaces

The DC power supply is equipped with RS-232/RS-485 (MODBUS) for standard interfaces. Optional Ethernet , USB , GPIB and RS-232/RS-485 (SCPI) are also available for better integrations with automatic test systems and the needs of industry 4.0.

Applications

Photovoltaic (PV), electric vehicle (EV), battery charge simulation, fuse and contactors.
