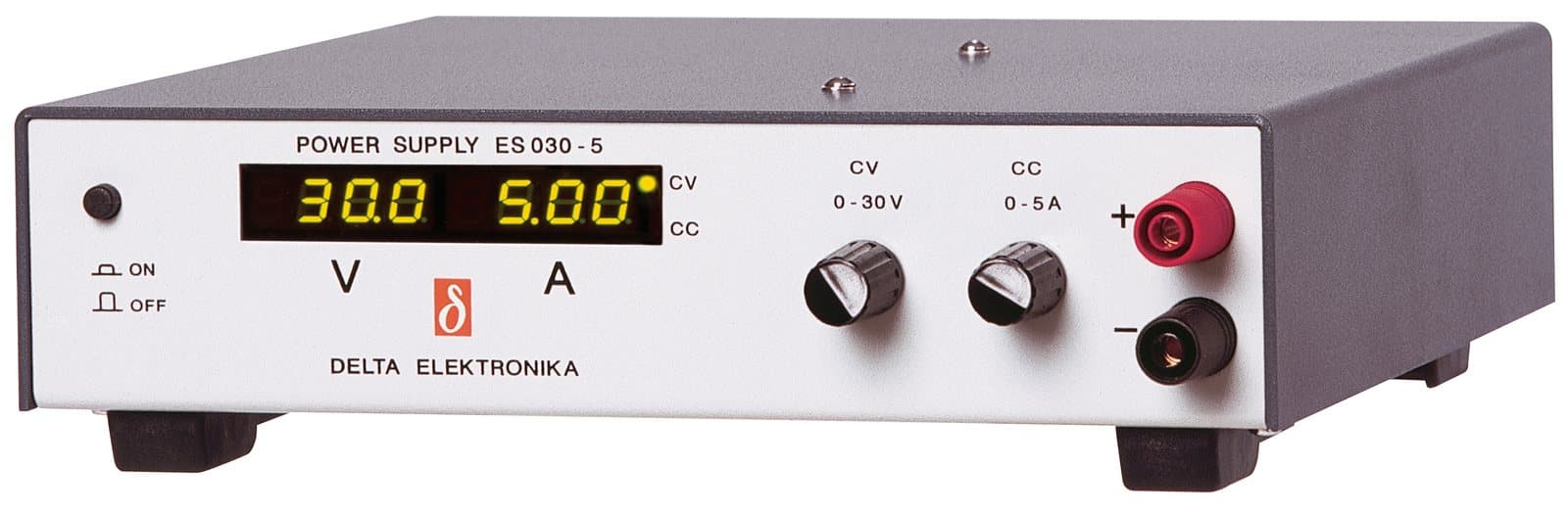

Delta ES150/EST150 150W DC Power Supplies

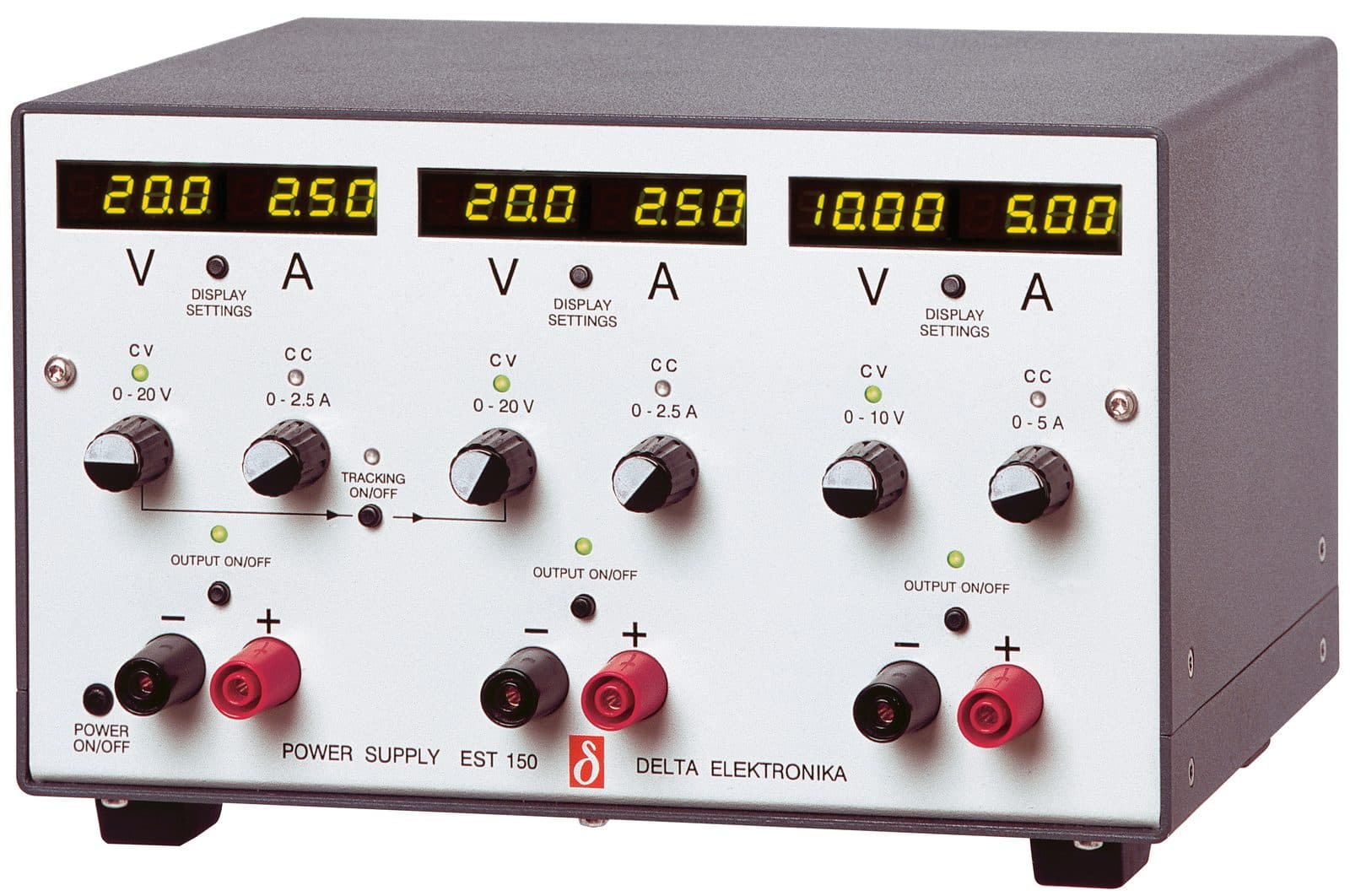

The ES150/EST150 is a 150W programmable DC power supply designed for laboratory and industrial applications. It offers flexible output with constant power characteristics, ensuring long life at full power and excellent dynamic response to load changes. The EST150 variant provides three independent floating outputs, each with its own ON/OFF switch.

The ES150 series includes models with the following output ranges:

• ES015-10: 0–15V at 0–10A

• ES030-5: 0–30V at 0–5A

• ES075-2: 0–75V at 0–2A

• ES300-0.45: 0–300V at 0–0.5A

• EST150: Triple output with 0–10V at 0–5A and two 0–20V at 0–2.5A

These models provide flexibility to meet various application requirements.

ES150 Key features include:

• Low Ripple and Noise: Ensures clean and stable output.

• High Efficiency: Up to 84% at full load.

• Fast Load Response: Recovery time of 100 µs after a 50–100% load step.

• EMC Compliance: Surpasses CE requirements with low emissions and high immunity.

• Overload Protection: Protected against all overload and short circuit conditions.

• Long Lifespan: Designed for long life at full power.

• Convection Cooling: Silent operation without fans.

• Programmable Interfaces: Options include analog voltage and current control via 10-turn potentiometers.

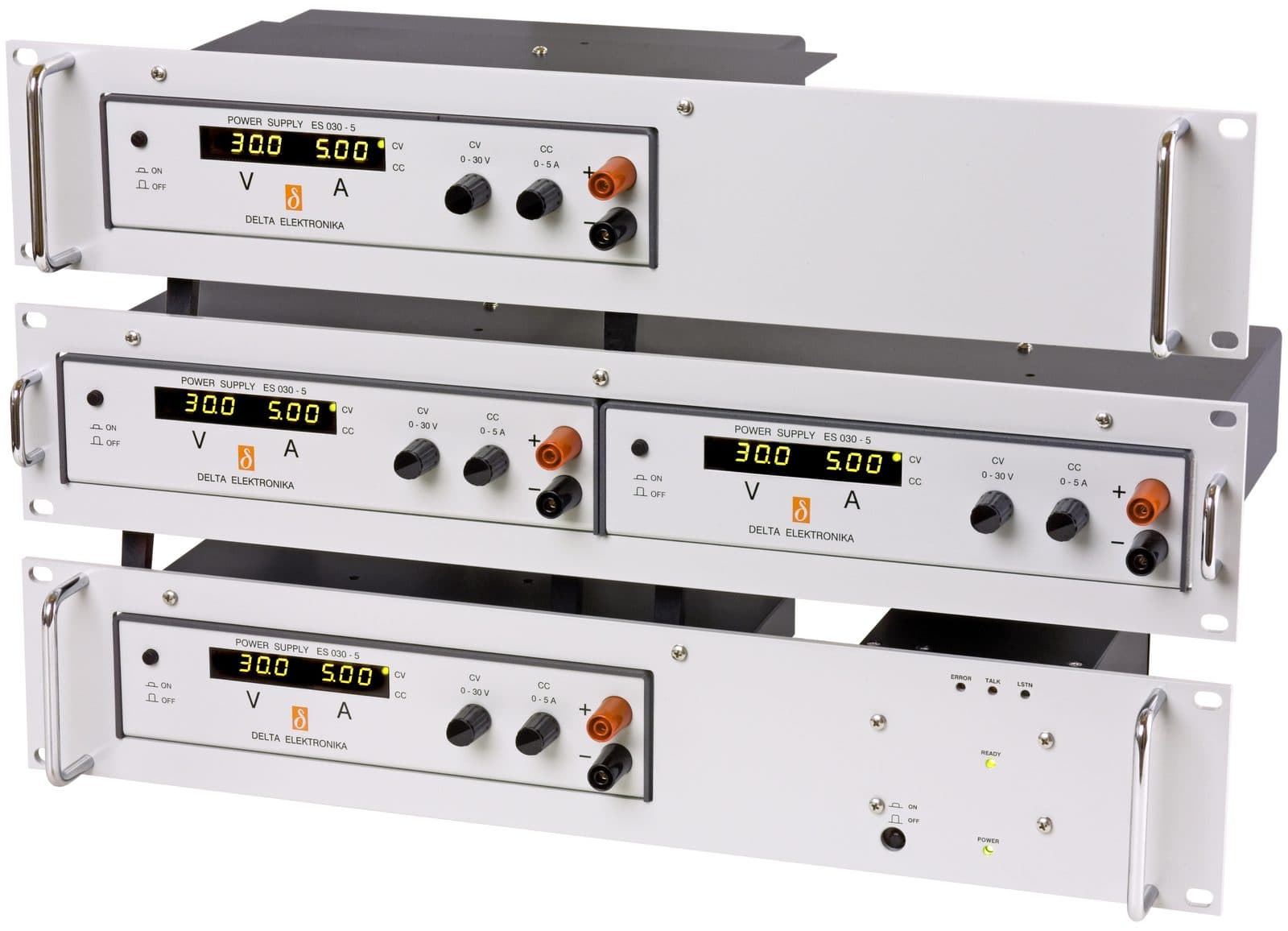

• Dimensions: Half 19" rackmount, 66 mm height, 202 mm depth.

• Weight: Approximately 1.7 kg.

• Cooling: Convection cooling for silent operation.

ES150 specifications include:

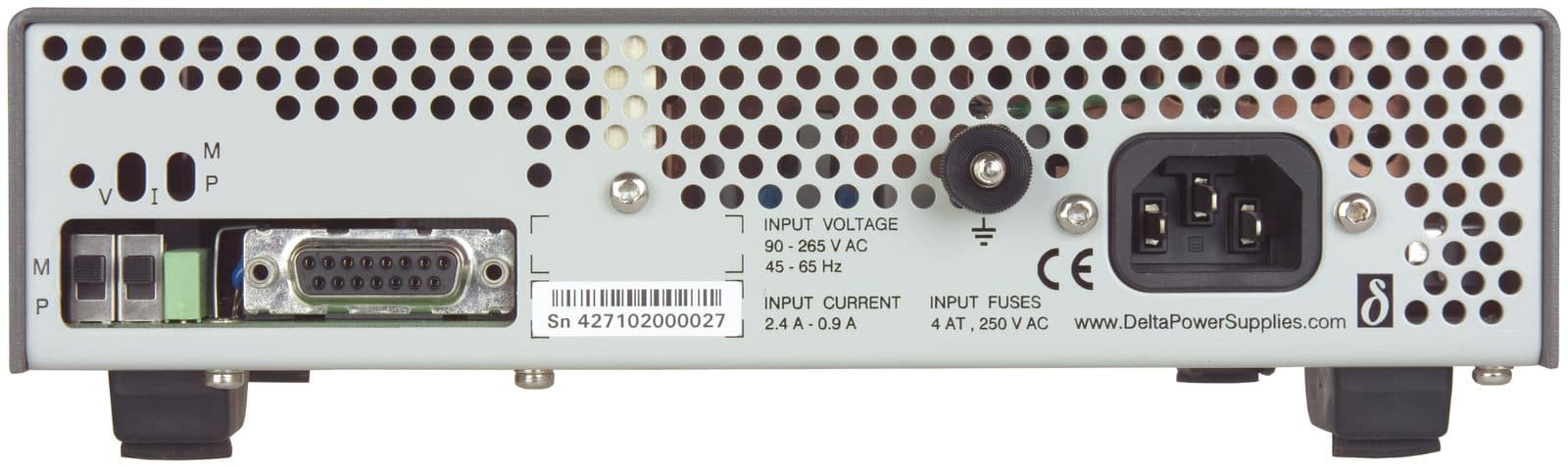

• Input Voltage: Single-phase AC, 90–265 V (48–62 Hz).

• Power Factor: 0.99 at 110 V AC, 0.83 at 230 V AC under full load.

• Standby Power Consumption: 12 W at 110 V AC, 15 W at 230 V AC.

ES150 protection and safety features contains:

• Overvoltage Protection: Fixed at 34V (internal adjustment range 6–34V).

• Thermal Protection: Shuts down output in case of insufficient cooling.

• Remote Shutdown: +5V (3.5–12V) or relay contact, response time 3 ms.

• Insulation: Input/output isolation up to 3750 V RMS for 1 minute.

• Protection Class: IP20.
