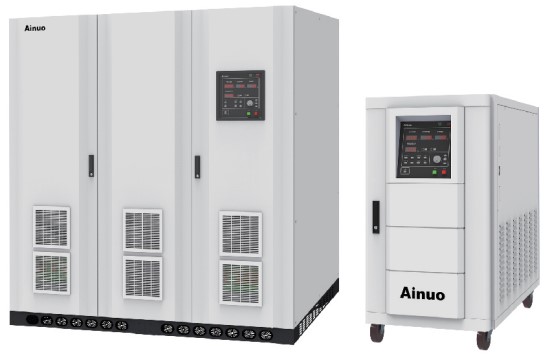

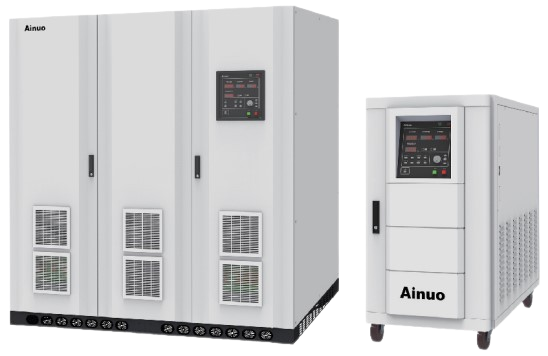

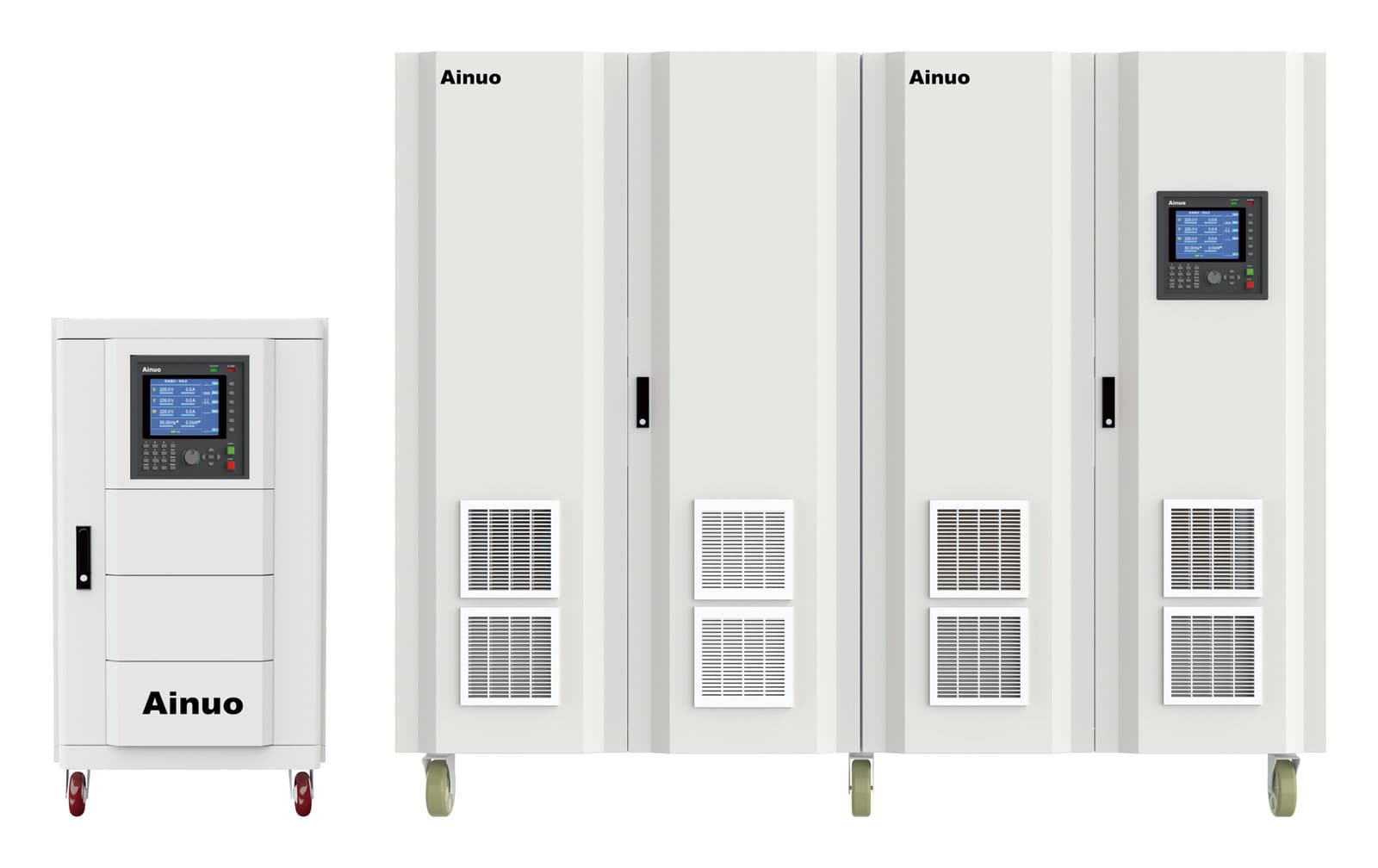

ANFC(F) Series
AC Power Supply
Product Introduction
The ANFC(F) series AC power supply adopts FPGA digital control, instantaneous waveform control and high-frequency pulse width modulation (SPWM) technologies. It has the advantages of fast response speed, high output accuracy, and superior waveform quality; it can withstand 3 times the rated current impact, high capacity and strong load adaptability; adopts modular design concept, small volume and weight, convenient operation and high cost performance. Mainly used in applications such as home appliances, motors and production lines, it is one solution that meets the basic needs of traditional industries and a power supply alternative for equipment upgrades.
Features
- Adopt FPGA digital technology, realize accuracy control and high quality sine wave output.
- Operating in over current shock (up to 3 times of rated current) within 2s, start the impact load of 1/3 capacity of power supply directly.
- Adjustable voltage and frequency during output status.
- Three-phase loading separately, start single phase output by U/V/W fast settings (only suitable for three-phase output power supply).
- Measurement: voltage, current, frequency, active power.
- Online monitoring: monitor IGBT temperature, transformer temperature, fan speed, input voltage and other parameters during output status.
- Operating data recorders: keep the record of power supply status and alarm code automatically during alarming.
- Voltage range: 1.0–150.0 V or 150.1–300.0 V automatic adjustment, or locked at 1.0–300.0 V.
- Shortcuts groups, power-off memory, shortcuts key and knobs operation.
- Fan speed will be adjustable automatically with the temperature of power supply to reduce the noise.
- Lock key, user-friendly design; automatically locks after 5 minutes of inactivity to prevent operation mistakes.
- Standard RS232; optional RS485, GPIB, Ethernet, analog control and other remote communication/control.
Applications

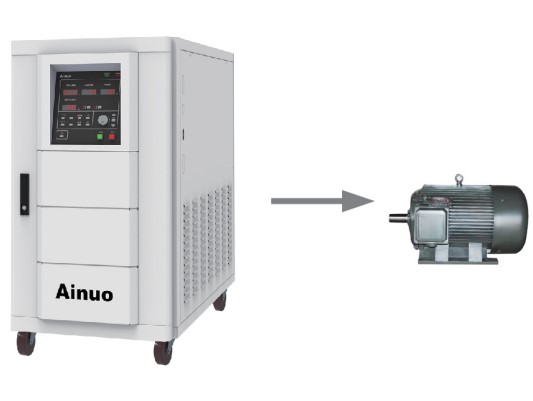

Over shock capacity: Can withstand 3 times the rated current shock for 2 seconds, impact load of 1/3 capacity of the power supply directly without soft start (below 1000 KVA).

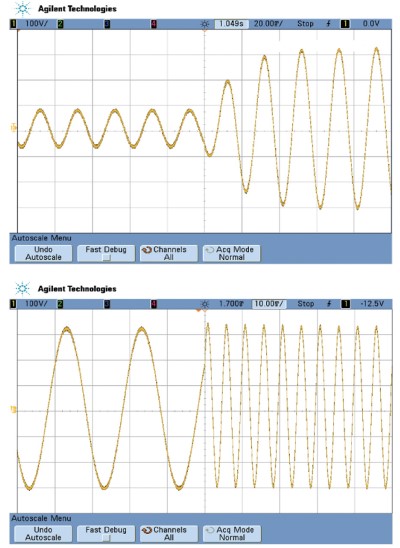

Adjustable voltage and frequency during output

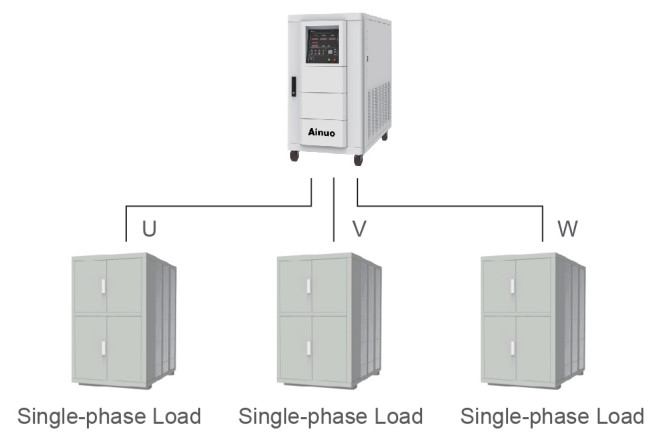

Three-phase loading separately(Only suitable for three-phase output power supply)

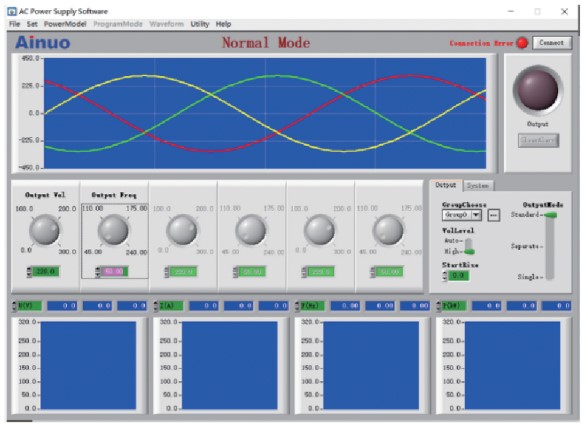

PC control software
Specifications
| Model | ANFC015S(F) | ANFC020S(F) | ANFC030S(F) | ANFC045S(F) | ANFC060S(F) | ANFC090S(F) | ANFC120S(F) | ||
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 15kVA | 20kVA | 30kVA | 45kVA | 60kVA | 90kVA | 120kVA | ||
| Input | Voltage, Frequency | 3-phase 4-wire + PE, Phase voltage: 220V±33V, line voltage: 380V±57V, 50/60Hz±3Hz | |||||||
| Output | Voltage | single-phase two-wire, Automatic state: (low-grade) 1.0~150.0V, (high-grade) 150.1~300V; high-grade lock: 1.0~300.0V | |||||||
| Frequency | 40.00~70.00Hz, 100Hz, 120Hz, 200Hz, 240Hz | ||||||||
| Rated current | 110V: | 136.3A | 110V: 181.8A | 110V: 272.7A | 110V: 409.1A | 110V: 545.4A | 110V: 818.2A | 110V: 1090.9A | |
| 220V: | 68.2A | 220V: 90.9A | 220V: 136.3A | 220V: 204.5A | 220V: 272.7A | 220V: 409.1A | 220V: 545.4A | ||
| Setting accuracy | Voltage | Resolution: 0.1V; accuracy: 0.2%×reading value + 0.2%×full scale value | |||||||
| Frequency | Resolution: 0.1Hz; accuracy: 0.05% | ||||||||
| Testing accuracy | Voltage | Resolution: 0.1V; accuracy: 0.2%×reading value + 0.2%×full scale value | |||||||
| Frequency | Resolution: 0.1Hz; accuracy: 0.05% | ||||||||
| Current | Resolution: 0.1A/1A, accuracy: 0.3%×reading value + 0.3%×full scale value | ||||||||
| Power | Resolution: 0.1kW/0.01kW/0.001kW, accuracy: 0.45%×reading value + 0.45%×full scale value | ||||||||
| Frequency stability | ≤0.02% | ||||||||
| Voltage distortion | Linear load: THD<1% | ||||||||
| Transient recovery time | 20ms | ||||||||
| Crest factor | 1.41±0.1 | ||||||||
| Source voltage effect | ≤1% | ||||||||
| Load effect | ≤1% | ||||||||
| Overload capacity | 105%<outputs≤110%: output stops within 15s; 110%<outputs≤200%: stops within 5s; 200%<output≤300%: stops within 2s; 300%<output: output stops immediately | ||||||||
| Protection Mode | IGBT overheat, IGBT over current, Transformer overheat, Input under voltage, Input over voltage, Output under voltage, Output over voltage, Output over load, Output short circuit, Output over current | ||||||||
| Function | Online adjustment function | The output voltage and frequency (45~65Hz) can be adjusted online under status | |||||||
| Memory function | Power down memory function, memory last output mode and parameters; Shortcut group 7 groups | ||||||||
| Line voltage drop compensation | 0.000~0.500Ω | ||||||||
| Communication control interface | Standard: RS232; Optional: RS485, GPIB, Ethernet, Analog control port | ||||||||
| Environment | Temperature and humidity | 0~40°C; 20~90%RH | |||||||
| Dimensions (W×H×D mm) | 600×1130×1018 | 700×1330×1218 | 800×1768×1418 | ||||||
| Weight (Kg) | 175 | 190 | 250 | 370 | 500 | 560 | 970 | ||
