What is the ES150/EST150 DC Power Supply?

The ES150/EST150 is a 150 W programmable DC power supply for lab and industrial use. The EST150 variant offers three independent floating outputs with individual ON/OFF switches.

What are the output specifications?

Models: ES015‑10 (0–15 V @ 0–10 A), ES030‑5 (0–30 V @ 0–5 A), ES075‑2 (0–75 V @ 0–2 A), ES300‑0.45 (0–300 V @ 0–0.5 A); EST150: triple output (0–10 V @ 0–5 A and two 0–20 V @ 0–2.5 A).

What are the key features of the ES150?

Low ripple/noise, high efficiency (~84%), fast load response (100 µs for 50–100% load step), EMC compliance, overload protection, long lifespan, convection cooling, analog programmable interfaces.

What are the physical specifications?

Half 19" rackmount, 66 mm height, 202 mm depth; weight ~1.7 kg; silent convection cooling.

What are the input specifications?

Input: 90–265 V AC (48–62 Hz); power factor: 0.99 at 110 V AC, 0.83 at 230 V AC; standby consumption: 12 W (110 V), 15 W (230 V).

What protection and safety features are included?

Over-voltage protection (fixed 34 V, adjustable 6–34 V), thermal protection (cooling shutdown), remote shutdown (+5 V or relay; 3 ms), 3750 V RMS isolation, IP20 rated housing.

DELTA SM6K

We are pleased to announce the successor to Delta Elektronika’s first generation SM 6000, the SM6K. The new SM6K series brings the 6kW range onto the same bidirectional, regenerative, and constant-power architecture and modular interface concept as the SM15K, while updated electronics improve temperature coefficient, long-term stability, minimum sink voltage and Ethernet connectivity.

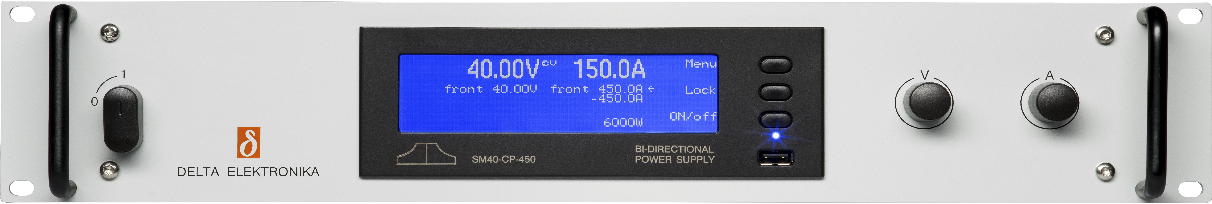

The SM6K Series

The SM6K is a power supply series featuring bidirectional and constant-power output. It contains all standard functions of the SM15K series, such as Ethernet control, digital control, function blocks and more. Like the SM15K and SM3300, the SM6K provides four slots that are compatible with the ANYBUS pluggable extension modules. This enables a modular approach to extending functionality and interfacing capabilities, such as high-performance Master/Slave operation and a diverse choice of industrial automation protocols.

The SM6K series will consist of the following models:

Model

SM40-CP-450 *

SM75-CP-250 *

SM330-CP-55

SM1000-CP-18

Availability

Mid-March 2026

Mid-April 2026

Yet to be specified

A preliminary data sheet featuring the SM40-CP-450 can be downloaded here: Preliminary Data sheet SM6K.

*Available for order

Specifications

The SM6K is the 6kW counterpart to the SM15K and incorporates new and improved technology. Compared to the SM15K, the SM6K offers a better temperature coefficient and long-term stability, a lower minimum sink voltage (on the low-voltage model) and a 1 Gbit Ethernet interface. The SM6K will be launched with a renewed software architecture, starting with the same user experience as the SM15K. This new software architecture will enable future software developments.

The SM6K continues the Delta DNA and improves upon the SM6000 with excellent efficiency, dynamics, low ripple, low EMI, excellent EMC, great reliability and the well-known user-friendly UI paired with low audible noise.

In terms of programming speed, the SM6K is significantly faster than a standard SM6000. Only an SM6000 equipped with the high-speed programming option can match the fastest step times specified for the SM6K.

Based on the output range, the following SM6K models replace the listed SM6000 models in the table below. Because of the constant-power characteristic, each SM6K model typically covers multiple SM6000 voltage/current combinations.

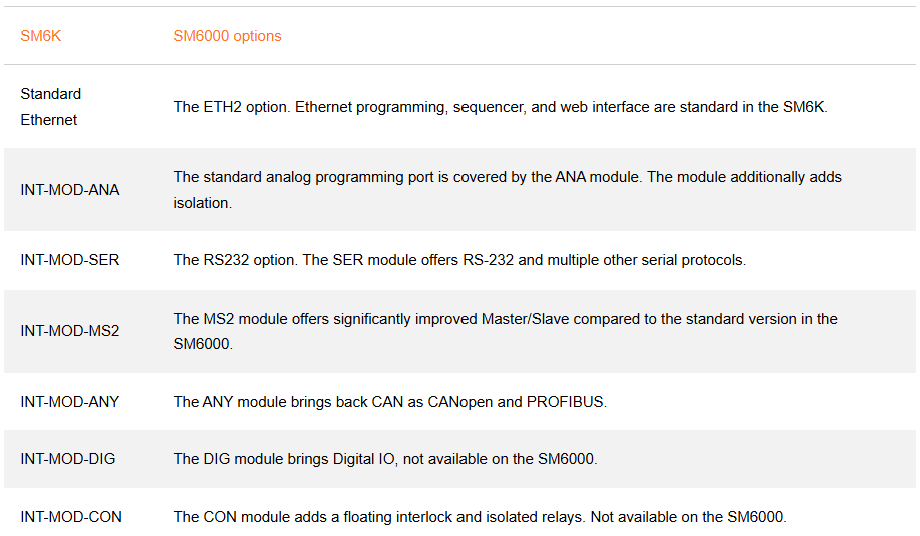

All SM6000 interface options have an equivalent or extended function in the SM6K interface module family. An example of possible interfacing replacements is shown in the table below.
