GE&EL AC/DC SiC-RS Rack Series Grid Simulator
22.5 kVA – 30 kVA
Manufactured by Cinergia · supplied and integrated by Intepro

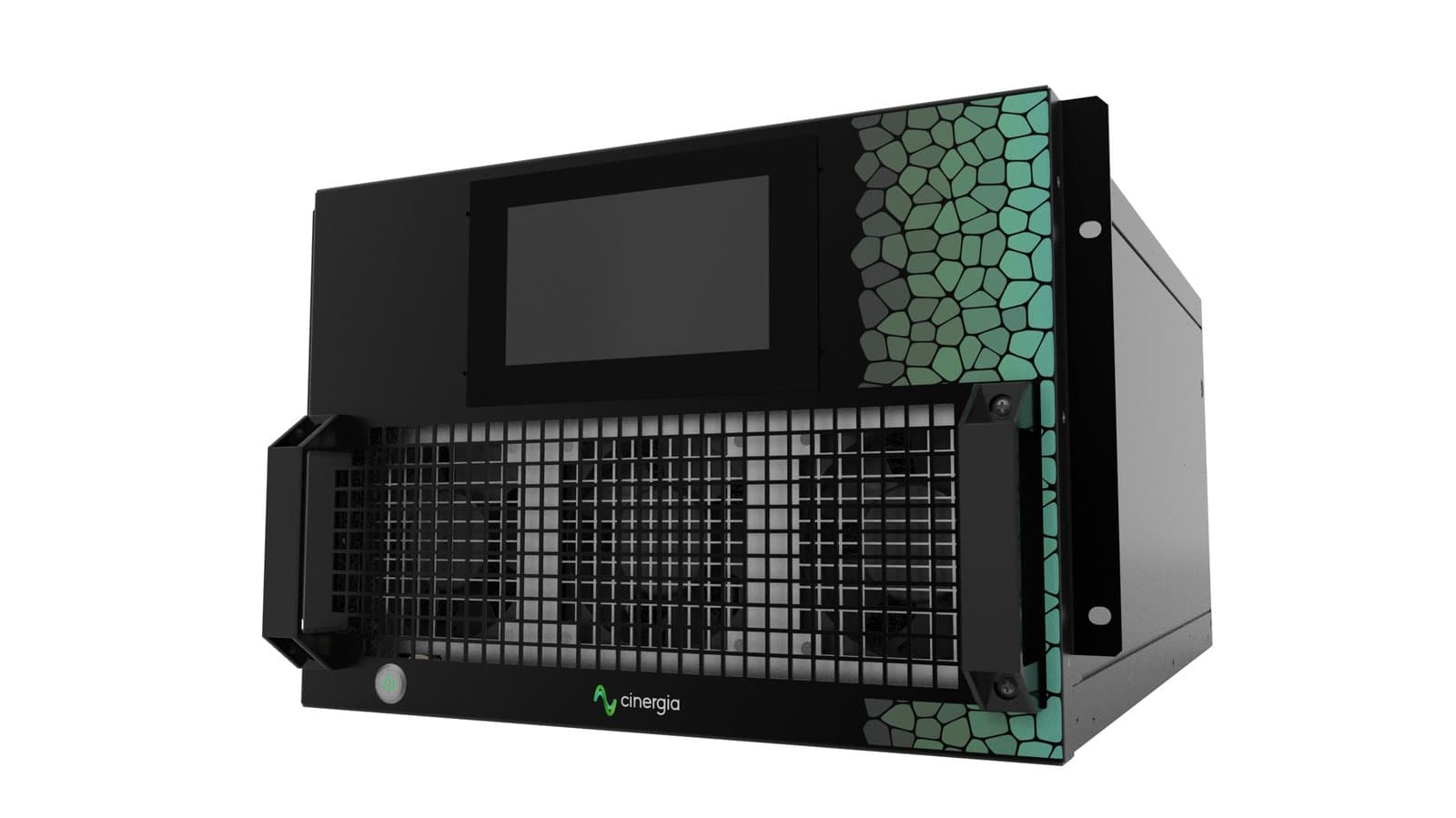

Four-quadrant regenerative grid simulator, AC electronic load and bidirectional DC source in a 7U rack unit — 30kW in 715mm of depth, on silicon-carbide switching, with a 10 to 400Hz band as standard.
Download the datasheet
Detail views

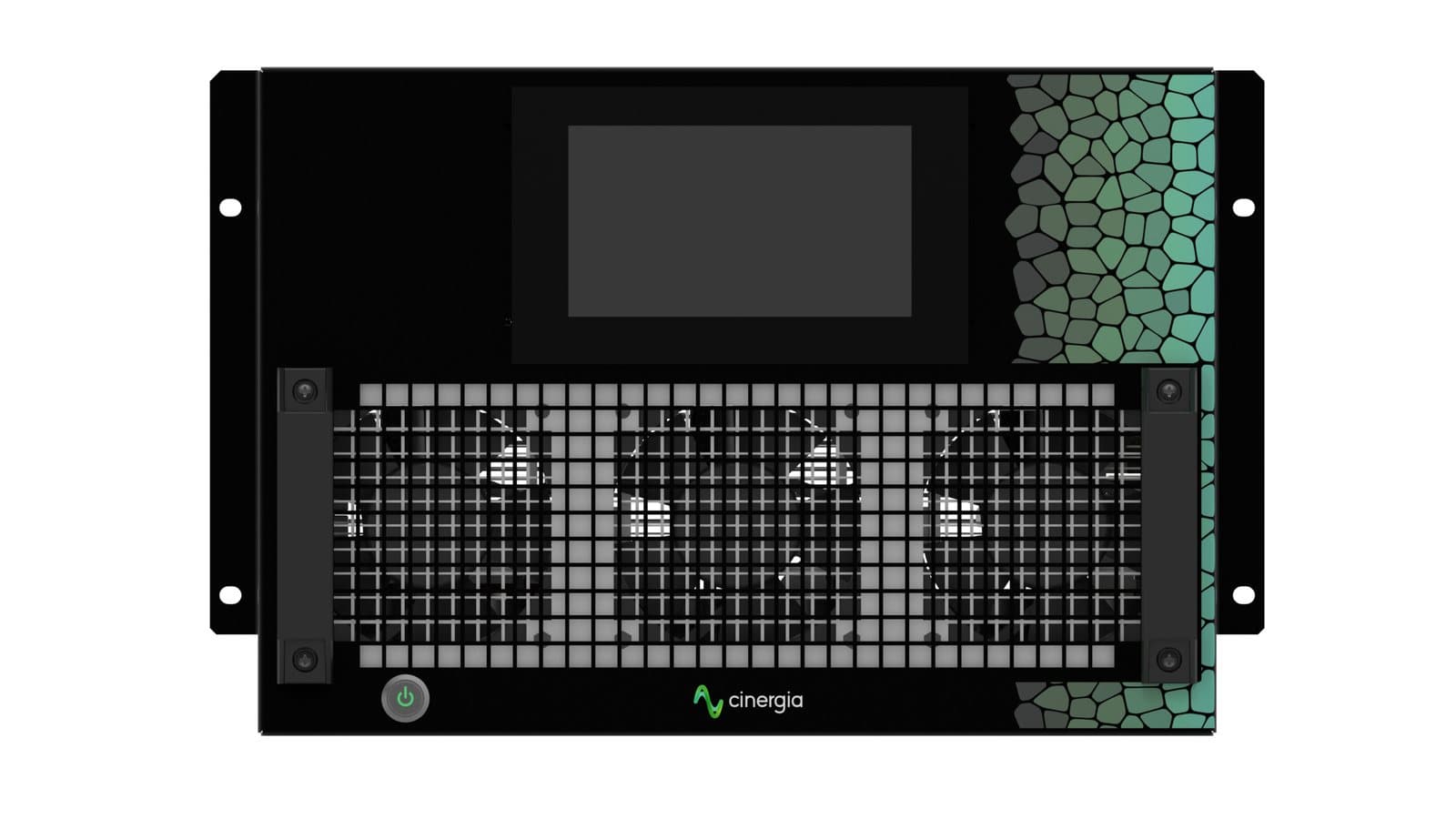

Front elevation. The rack ears are the point: 30kW of four-quadrant converter that bolts into a 19-inch cabinet instead of standing next to one.

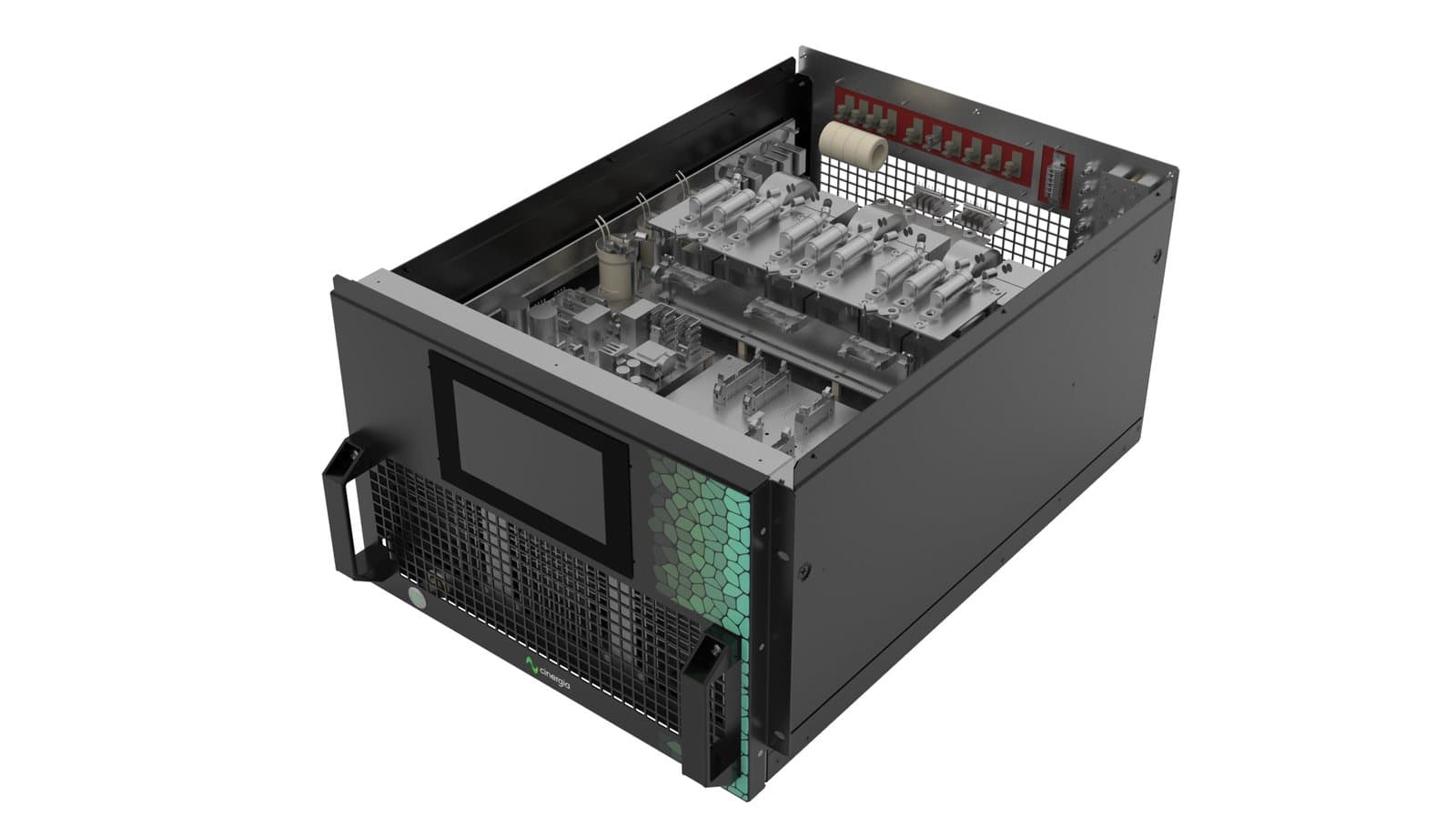

Lid off. Silicon-carbide switching is what makes 30kW fit in 7U — lower switching losses mean less heat to move out of a shallow chassis.
Supplied and integrated by Intepro, which is Cinergia’s North American distributor. Manufactured by Cinergia. Specifications should be confirmed against the manufacturer’s current datasheet before quoting — revisions are theirs, not ours.
Output
| Output voltage | 35 to 277Vrms phase-neutral, 35 to 480Vrms phase-phase (295Vrms and 510Vrms with the high-voltage option) |
|---|---|
| Output frequency | 10 to 400Hz |
| Output current | 44 Arms rated per channel |
| Phase | single / three / dc |
Input
| phase | 3 phase |
|---|---|
| frequency | 47-63Hz |
Models
Part numbers in crawlable text — searchable, linkable, and quotable by model.
| Part number | Power | Phase | Input | Max input current |
|---|---|---|---|---|
| GE&EL 22.5 AC/DC SiC-RS | 22.5 kVA | — | — | — |
| GE&EL 30 AC/DC SiC-RS | 30 kVA | — | — | — |
Capabilities
- 19-inch rack format: 30kW in a 7U unit 715mm deep, so it mounts in a standard cabinet rather than standing beside one
- Silicon-carbide switching for lower switching losses in a compact design
- One unit operating as AC grid simulator, AC electronic load, DC bidirectional source and sink, power amplifier, battery tester and cycler, or PV panel emulator
- AC fundamental frequency 10 to 400Hz as standard, resolution 1mHz
- Harmonics to the 50th across a range up to 5kHz, 50 independent harmonics per phase
- Grid-side current THDi below 2% at rated power
- Voltage transient time under 100 microseconds from 10% to 90% of 230Vrms
- Designed and manufactured in Europe to CE marking, safety, EMC and ISO 9001
- A matching isolation transformer, the IT30-RS, is available in a 5U rack unit
