Vega Series Customizable Power Racks
15 kW – 480 kW

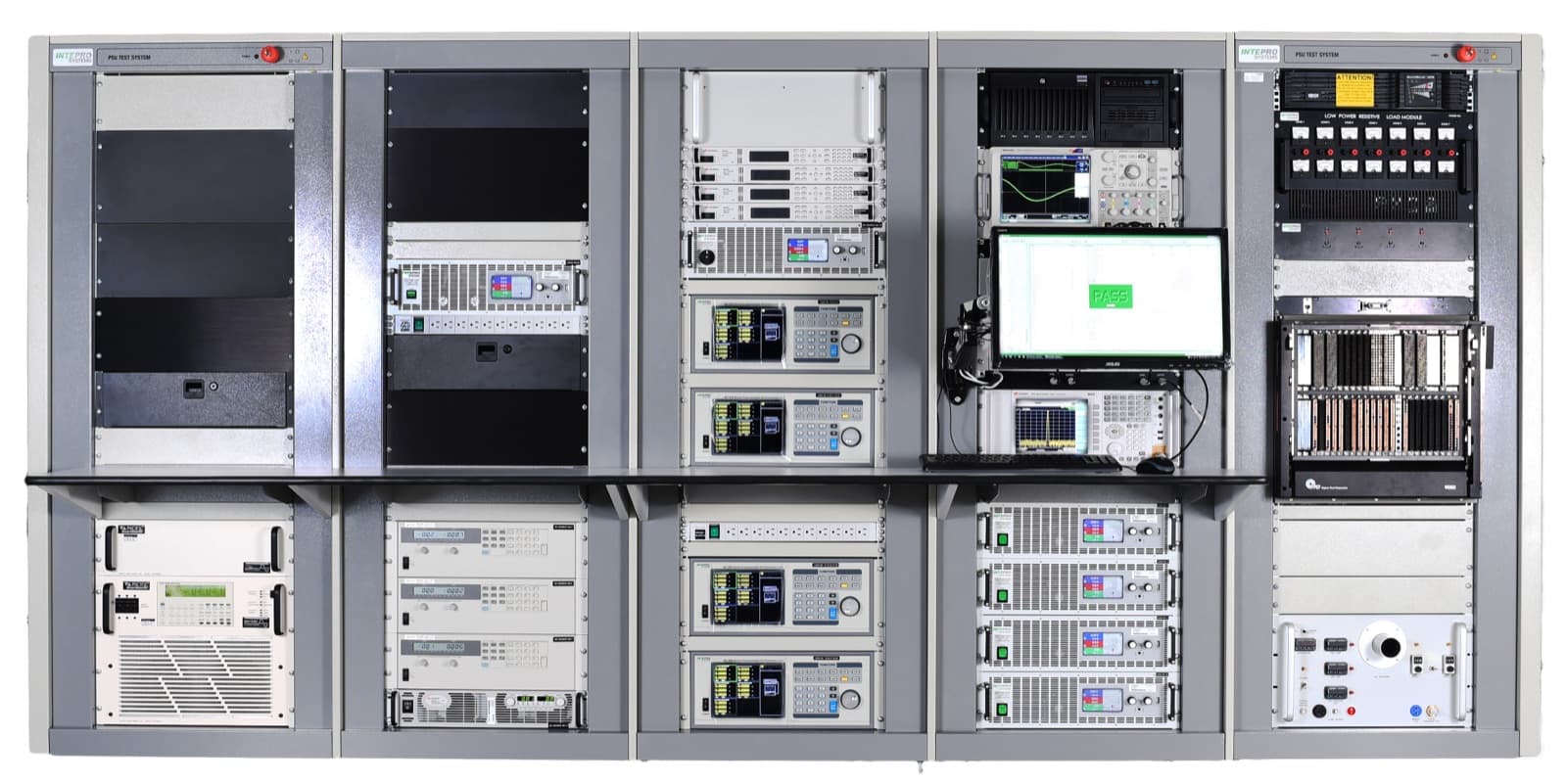

Customizable high-power racks built from 15 kW 3U regenerative loads and DC supplies — mixed and matched to the test requirement rather than bought as a fixed configuration.
Download
Detail views

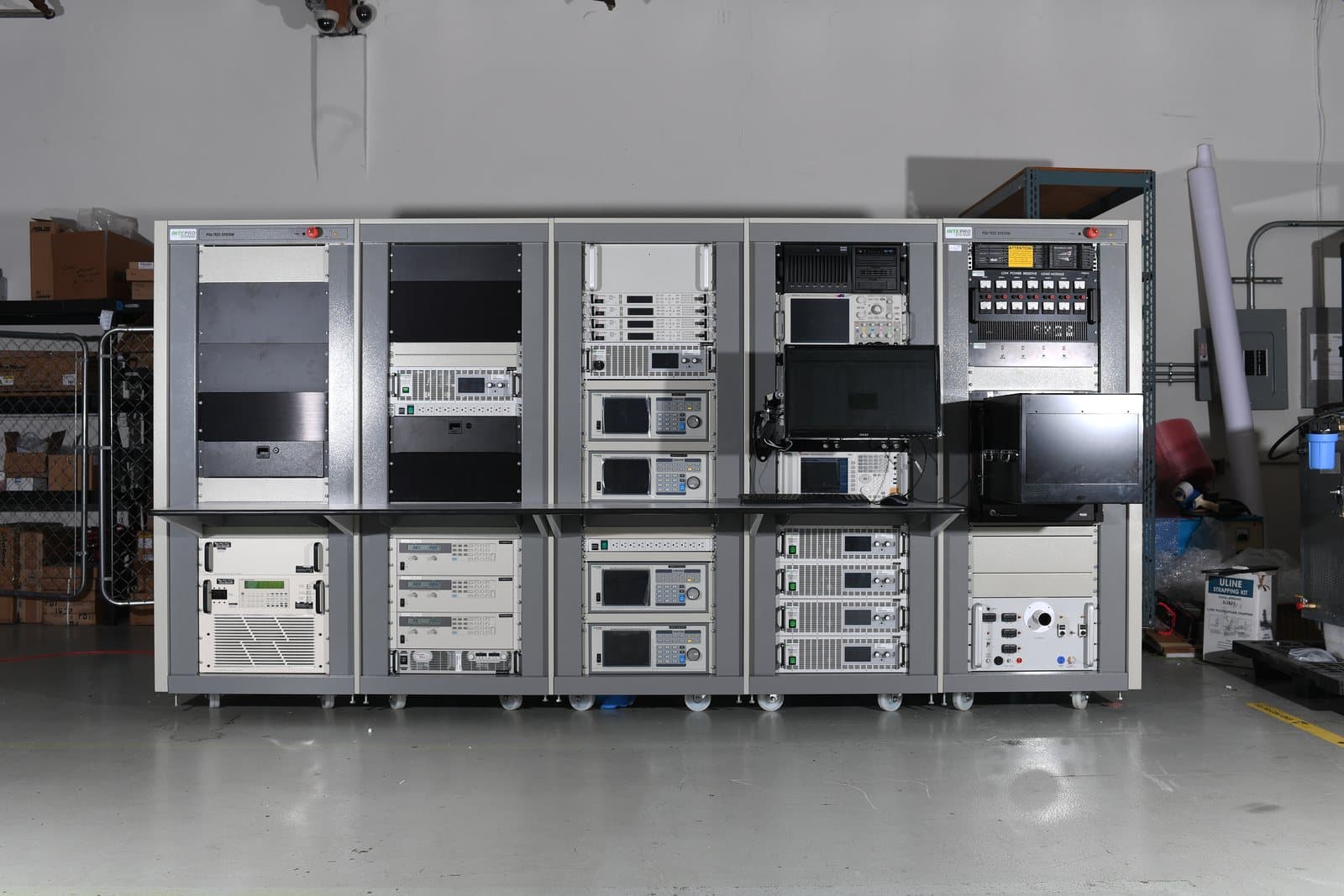

The same five-bay row on the floor in Tustin, before shipping. Castors, not a plinth — these are built to be rolled into a customer’s test area and levelled there.
From the side, the depth of each bay and the run between them — the part of a rack build that decides whether it can be serviced later.
Output
| Output voltage | up to 1500 VDC |
|---|---|
| Output current | up to 8670A (source and load racks); up to 6120A (bi-directional rack) |
| Phase | dc |
Input
| phase | 3-phase; 4 Wire |
|---|---|
| voltage | 208 L-L, 400 L-L, 480 L-L |
Models
Part numbers in crawlable text — searchable, linkable, and quotable by model.
| Part number | Power | Phase | Input | Max input current |
|---|---|---|---|---|
| PSI 9000 DC Source Rack | 15kW to 270kW | — | — | — |
| Bi-directional DC source rack | 15kW to 270kW | — | — | — |
| High-power regenerative DC load rack | 15kW to 270kW | — | — | — |
Capabilities
- Built from 15kW 3U regenerative loads or DC power supplies, mixed and matched to the test requirement
- Up to 480kW loaded or supplied at efficiencies of well over 90%
- 21U, 30U, 35U, and 42U chassis sizes; up to 180kW in a single rack, 480 kW total in three bays
- Auto-Ranging output stage delivers full power down to 1/3 of the voltage range
- The regenerative load and bi-directional source stages recover energy back to the AC grid — nearly 95% of the loaded energy
- Integrated function generator based on 4096 data points; arbitrary mode with up to 100 freely configurable steps
- Analog and USB interfaces standard; optional GPIB/IEEE three-way interface, plus LabView VIs for USB, RS232, GPIB, and Ethernet
- PSI 9000 programmable internal resistance (Ri setting) simulates wiring and connector impedance without buying hardware
What it is bought for
Each of these sets out the bus, the clause and where programs get caught out.
- Military Ground & Shipboard28 VDC, 270 VDC, 440 V 60 Hz shipboard
- EV Battery Packs & Modules40–1500 VDC, high current
- Traction Inverters & Motor Drivesbidirectional HV DC with regeneration
- Power Semiconductors (SiC / IGBT)high-voltage DC bias, hundreds to 1700 V class
- Power Supply & Converter Manufacturinguniversal AC input, regulated DC output
Where this sits in the range
2 of 2 by ceiling in ATE Test Systems.
Further reading
- 28 VDC Aircraft Bus Testing: The Second Program Inside MIL-STD-704F
- Configuring a High-Power Rack: The Vega Decision, Module by Module
- High-Current Battery Testing: The Joint Fails Before the 8,000A Supply
- Replacing a Test System: Match the Channel Architecture, Not the Kilowatts
- Sizing a Battery Test Rack: Bench Unit to 480 kW Test Floor
- LV 123 and LV 148: Testing Across the Voltage Window, Not Just at Nominal
