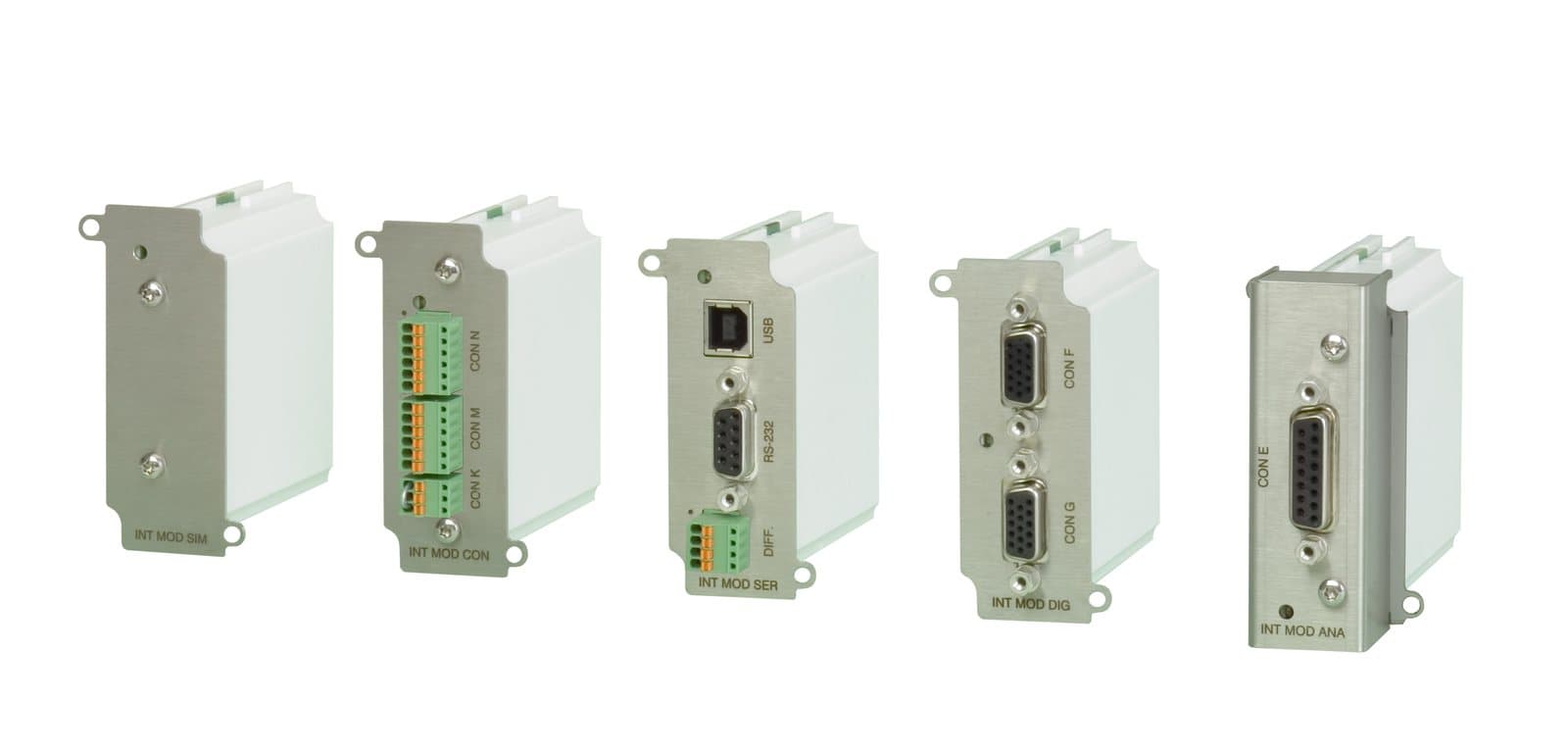

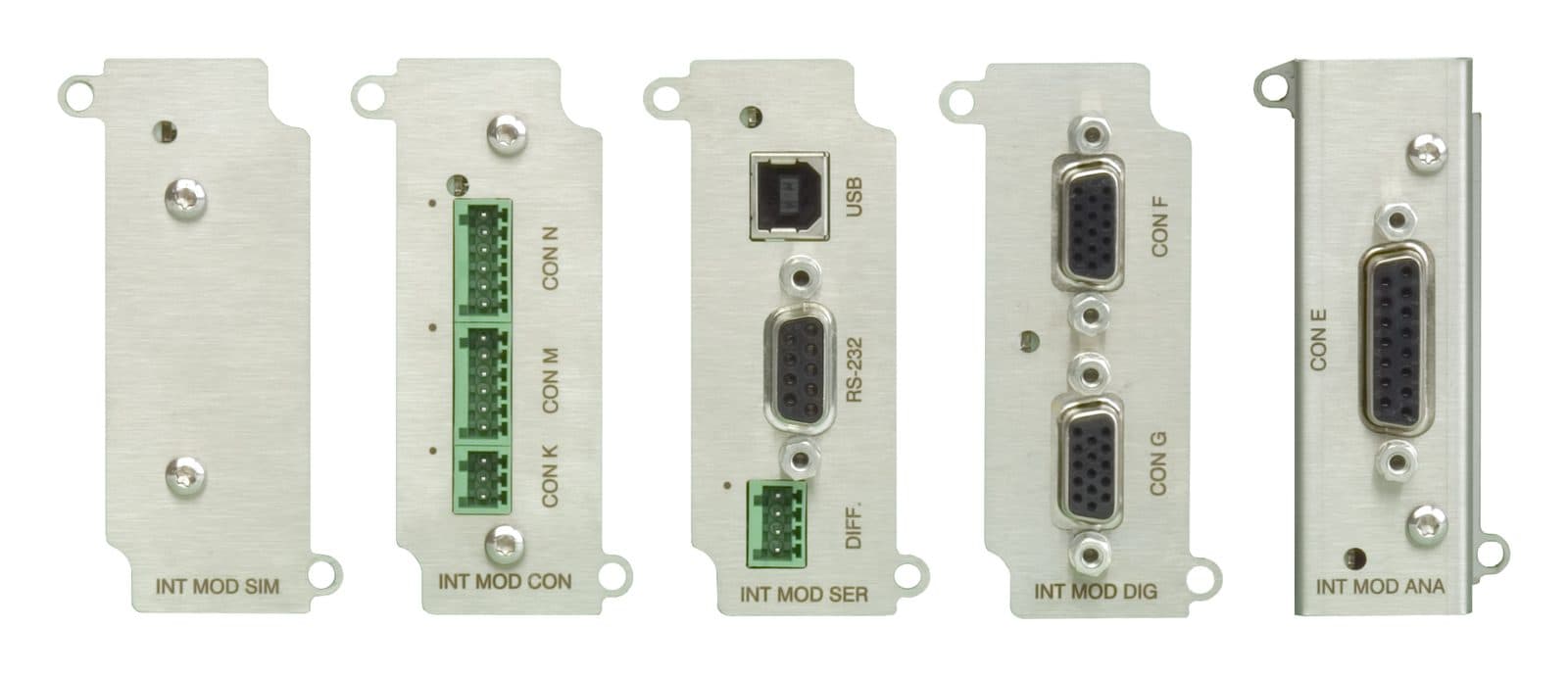

Delta Interface and Control Modules
Manufactured by Delta Elektronika · supplied and integrated by Intepro
The two modules that put a Delta supply under program control — an external Ethernet unit with a built-in sequencer, and an analog module for the bidirectional racks.
Manufactured by Delta Elektronika B.V. and supplied by Intepro, which is Delta's listed distributor for the United States, Canada and Mexico. Figures are transcribed from Delta's own published pages, retrieved 2026-09-05. Delta revises its documentation often — confirm against the current datasheet before quoting. Delta Elektronika (Netherlands) is not Delta Electronics (deltaww.com, Taiwan); they are unrelated companies. Several further accessory part numbers surfaced only on third-party manual-hosting sites during research and are deliberately absent from this page.
Models
Part numbers in crawlable text — searchable, linkable, and quotable by model.
| Part number | Power | Phase | Input | Max input current |
|---|---|---|---|---|
| PSC-ETH-2 | — | — | — | — |
| INT-MOD-ANA | — | — | — | — |
Capabilities
- PSC-ETH-2 external Ethernet unit — 16 bit programming and monitoring, SCPI command set
- PSC-ETH-2 runs sequences on the unit itself: 25 freely programmable sequences of 2000 steps each, so a profile does not depend on the test PC keeping time
- PSC-ETH-2 carries 8 isolated user inputs and 8 outputs for fixture interlocks and signalling
- PSC-ETH-2 fits the SM1500, SM800, ES300 and ES150 series; 19-inch rack mountable
- INT-MOD-ANA analog module — 16 bit AD and DA conversion, 0.2 % programming accuracy
- INT-MOD-ANA accepts 0 - 5 V or 0 - 10 V analog programming, isolated to 1000 VDC
- INT-MOD-ANA fits the SM15K, SM6K and SM3300 series
What it is bought for
Each of these sets out the bus, the clause and where programmes get caught out.
Every figure on this page is transcribed from delta-high-power-system-and-interfaces_deltaelektronika-com_retrieved-2026-09-05.txt. A build gate re-checks each one against that document and fails the build if it is not there.
