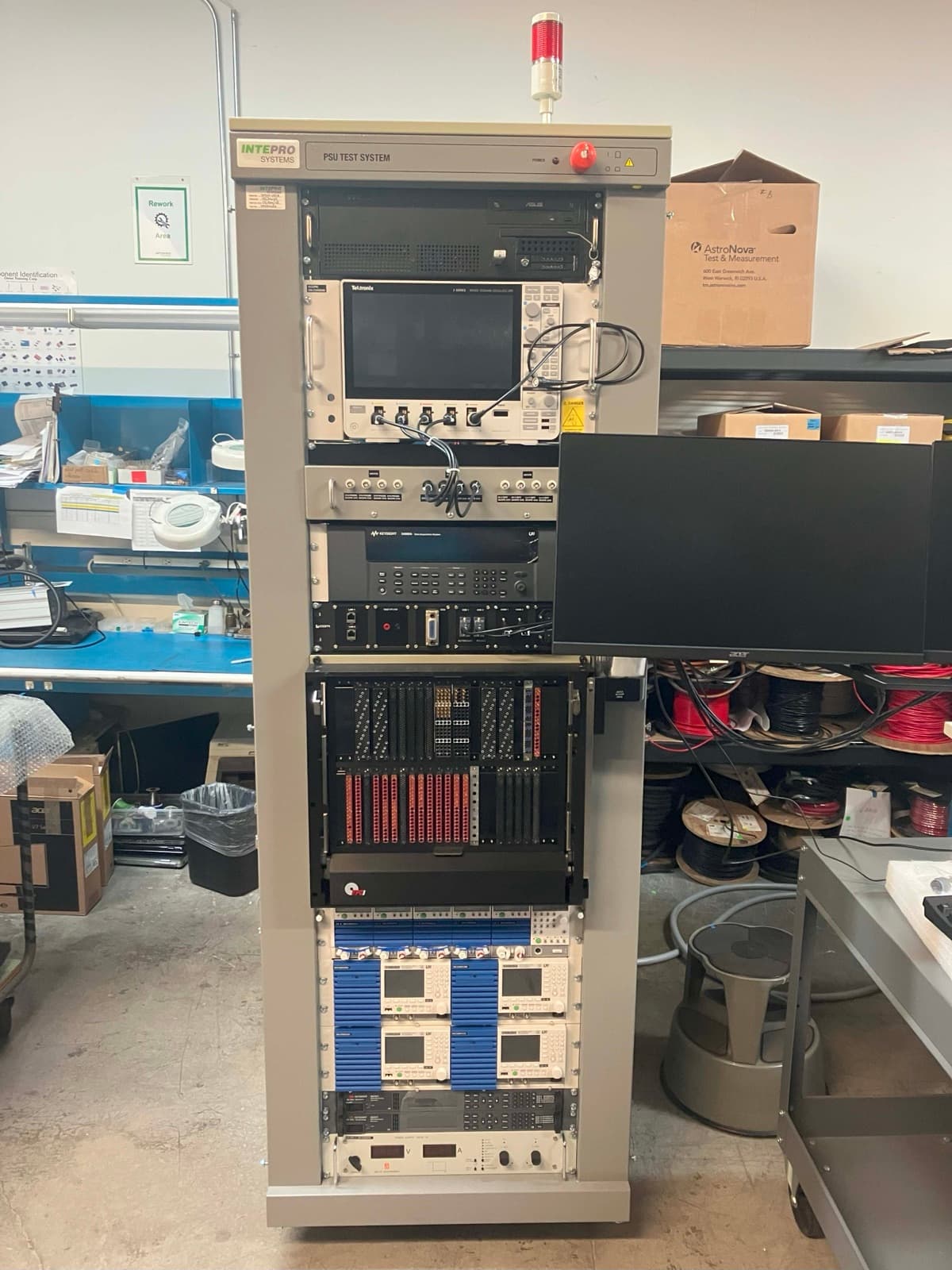

CTS4000 8-Channel Battery Cycler
High-accuracy eight-channel battery cycler, analyser and capacity tester built for cell formation and grading.
Download the datasheet
Detail views

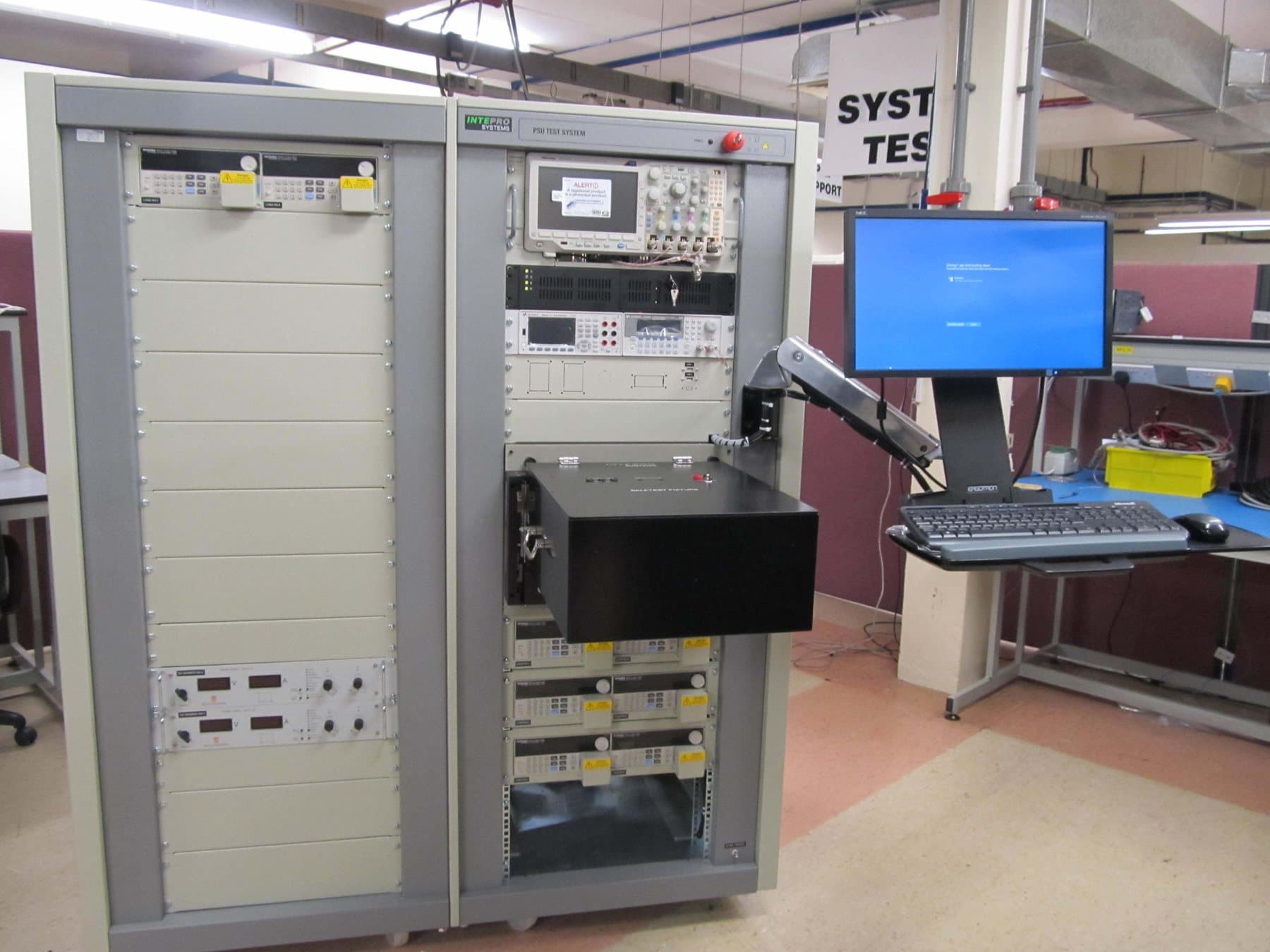

A battery test rack in service. The channel bays fill the left column; the instrument stack and the operator screen sit where someone standing at the rack can reach both.
Output
| Output voltage | 0V to 110V |
|---|---|
| Output current | 0A to 3000A |
| Phase | dc |
Models
Part numbers in crawlable text — searchable, linkable, and quotable by model.
| Part number | Power | Phase | Input | Max input current |
|---|---|---|---|---|
| CTS4000 | Max. 21kVA (user-definable) | — | — | — |
Capabilities
- Eight independent channels; multi-current range channels configurable per test
- Resolution: AD 16bit, DA 16bit
- Accuracy ± 0.05% FS for current and voltage
- Current response time 10ms in the range 10%~90% FS
- Data acquisition frequency 10Hz/100Hz optional; minimum pulse width 500ms
- Charge modes CCC, CVC, CC & CVC, CPC; discharge modes CCD, CPD, CRD
- Programmable protection: OT, OVP, OPP, PF, OCP
- Works without computer mode, up to 1GB testing data storage capacity
