SM Series Programmable DC Power Supply

1.5 kW – over 1 MW paralleled

Manufactured by Delta Elektronika · supplied and integrated by Intepro

Compact programmable DC supplies from 1.5 kW to 15 kW per chassis, parallelable beyond 1 MW.

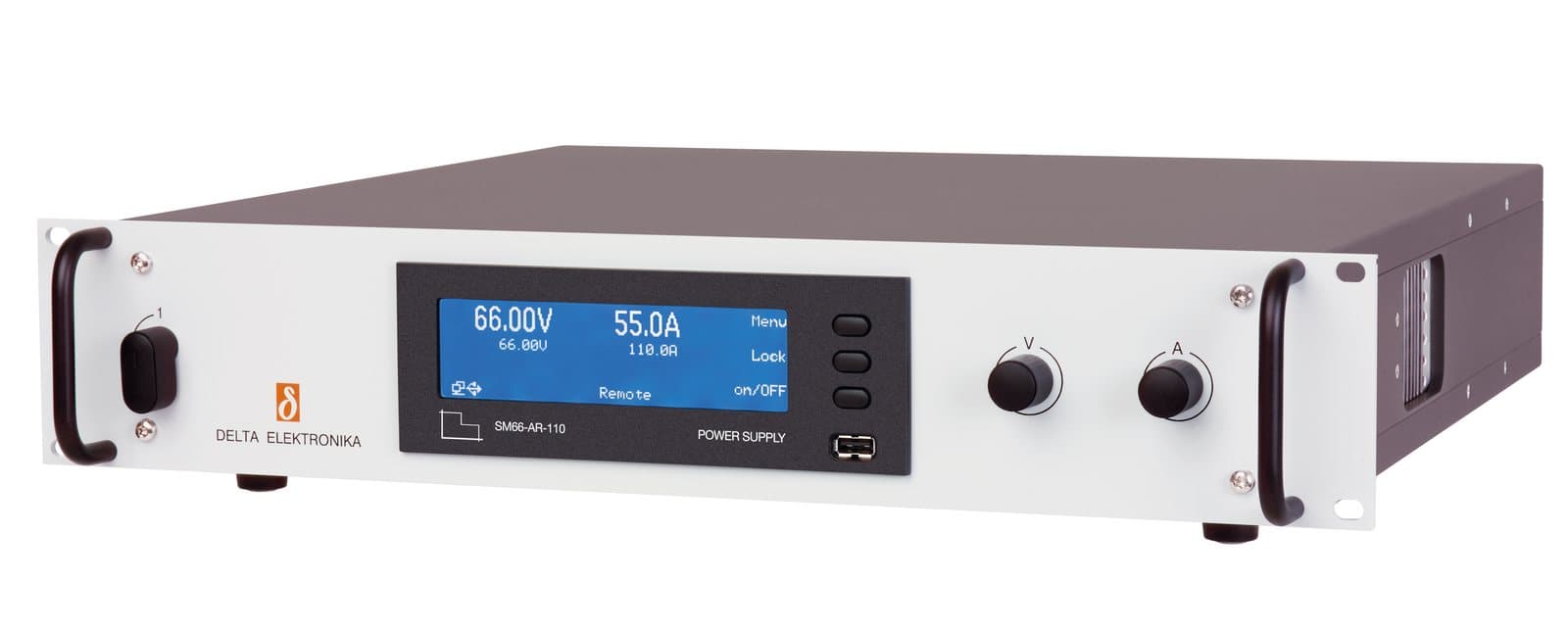

SM Series Programmable DC Power Supply — product photograph

Datasheets and documents

Detail views

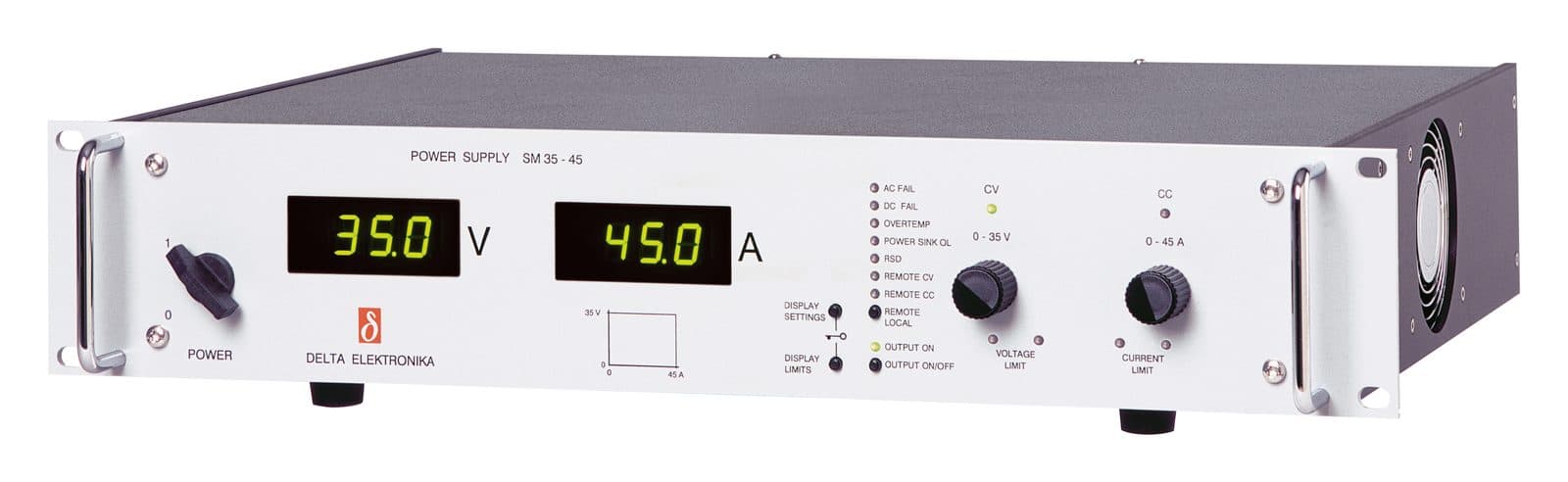

  • Delta Elektronika SM 35-45 programmable DC power supply, front panel

    SM 35-45, from the SM1500 series: the smallest chassis class on this page.

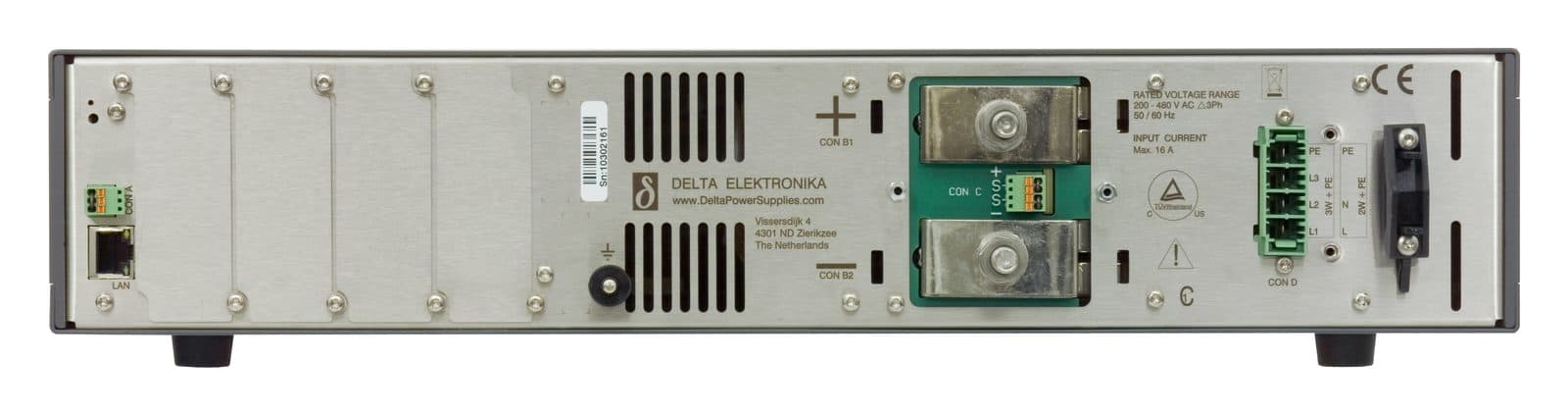

  • Rear panel of a Delta Elektronika SM 18-220 DC power supply

    Rear of an SM 18-220 (SM3300 series), with the output bus bars and interface slots.

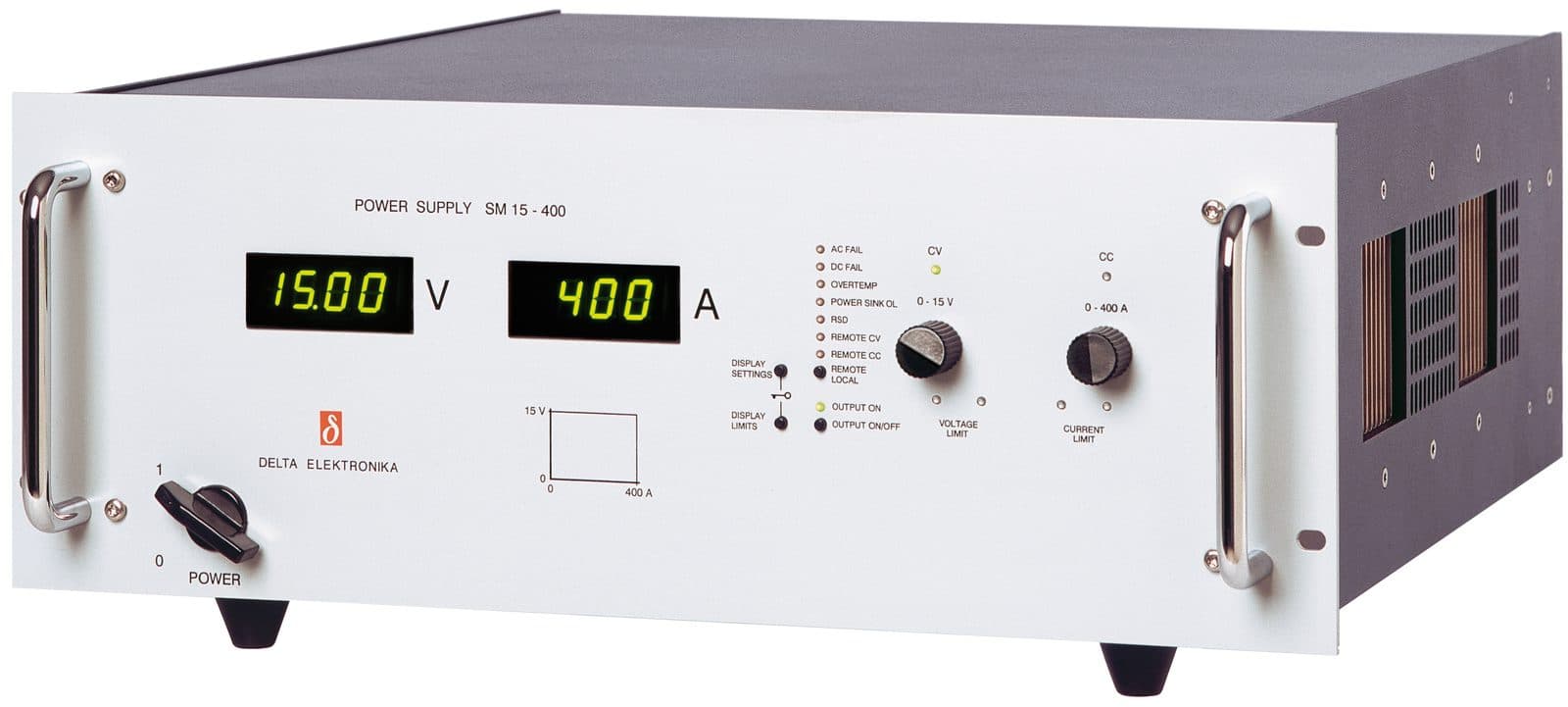

  • Delta Elektronika SM 15-400 programmable DC power supply, front panel

    SM 15-400, from the SM6000 series.

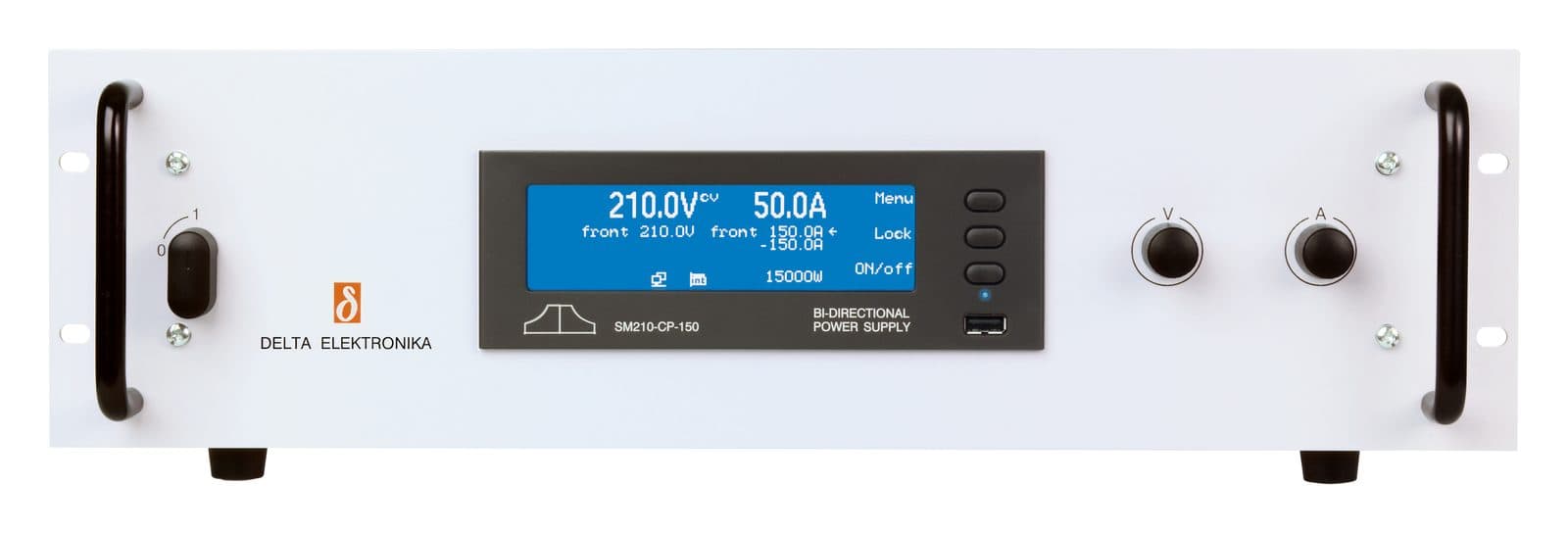

  • Delta Elektronika SM 210-CP-150 bidirectional DC power supply, front elevation

    SM 210-CP-150, from the SM15K series: the largest single chassis in the family.

Supplied and integrated by Intepro, manufactured by Delta Elektronika. Specifications should be confirmed against the manufacturer's current datasheet before quoting — revisions are theirs, not ours.

Output

Output voltageup to 1500V
Output currentup to 450A per chassis
Phasedc

Input

phase1 or 3 phase
voltage208V (1 or 3 phase) or 480V (3 phase, model specific)

Models

Part numbers in crawlable text — searchable, linkable, and quotable by model.

Part numberPowerPhaseInputMax input current
SM66-AR-1103300W (SM3300 series)—single or three phase—
SM100-AR-753300W (SM3300 series)—single or three phase—
SM330-AR-223300W (SM3300 series)—single or three phase—
SM660-AR-113300W (SM3300 series)—single or three phase—
SM30-2006000W (SM6000 series)—three phase—
SM60-1006000W (SM6000 series)—three phase—
SM120-506000W (SM6000 series)—three phase—
SM300-206000W (SM6000 series)—three phase—
SM600-106000W (SM6000 series)—three phase—

Capabilities

  • 1.5kW, 3.3kW, 6kW and 15kW single-chassis ratings; parallelable beyond 1MW
  • Up to 6U per chassis
  • Max output 1500V, 450A per chassis
  • AC input: 1 or 3 phase 208V, or 3 phase 480V (model specific)
  • Operating efficiency >90-96%
  • Regeneration efficiency up to 96%
  • LCD display; interface options vary by model (consult datasheet)
  • Auto-ranging output optional; included for 15kW models
  • Optional function generator; LabView VIs / SCPI support
  • Approvals on the SM1500, SM3300 and SM6000 datasheets: safety cTUVus, EN 60950 and EN 61010; EMC EN 61204-3, EN 61000-6-3 emission (CISPR 22 and EN 55022 Class B) and EN 61000-6-2 immunity
  • Programming interfaces by series: the SM1500 takes one factory-installed controller (Ethernet with sequencer, RS232, IEEE 488, isolated analog, PROFIBUS or CANbus); the SM3300 has Ethernet as standard plus optional isolated analog, RS485/RS422/RS232, USB, digital I/O, isolated contact and master/slave modules; the SM6000 takes one factory-installed controller (isolated analog, RS232, IEEE 488 or Ethernet with sequencer)
