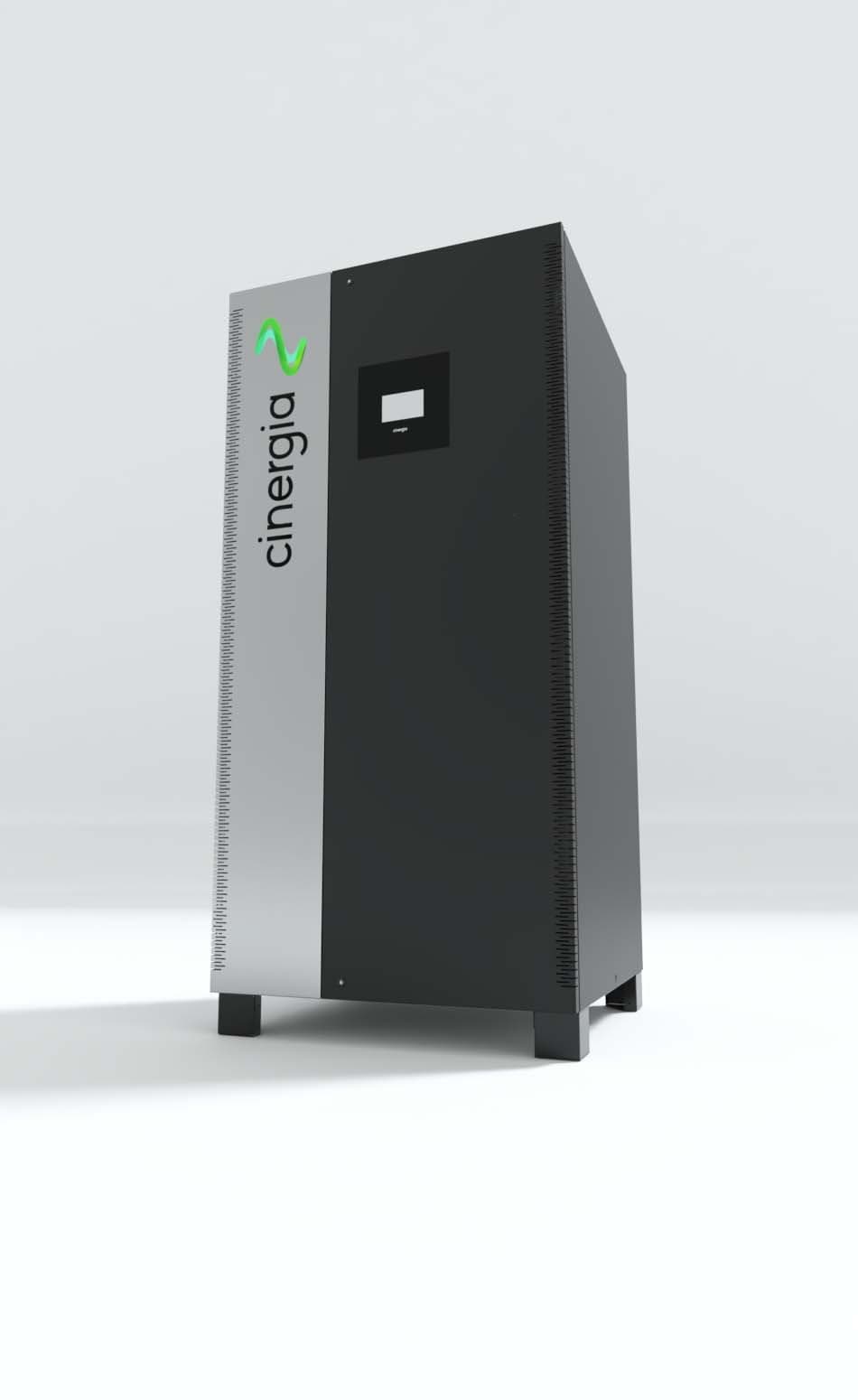

GE&EL+ vAC/DC All-Terrain Regenerative Converter
7.5 kW – 160 kW
Manufactured by Cinergia · supplied and integrated by Intepro
Grid emulator, electronic load and bidirectional DC converter in one cabinet, 7.5kW to 160kW across 13 models — for a bench whose test plan needs all three and has room for one.
Datasheets and documents
Supplied and integrated by Intepro, which is Cinergia’s North American distributor. Manufactured by Cinergia. Specifications should be confirmed against the manufacturer’s current datasheet before quoting — revisions are theirs, not ours.
Output
| Output voltage | AC to 277Vrms phase-neutral; DC from the same platform |
|---|---|
| Output frequency | 10 to 100Hz standard, 400Hz optional |
| Phase | single / three / dc |
Input
| phase | 3 phase |
|---|---|
| voltage | 400Vrms |
| frequency | 48-62Hz |
Capabilities
- 13 models from 7.5kW to 160kW
- One unit operating as grid emulator, electronic load or bidirectional DC source and sink
- AC fundamental frequency 10 to 100Hz as standard, to 400Hz as an option
- Small-signal bandwidth to 5000Hz
- Grid-side current THDi below 3% and power factor above 0.98 at rated power
- Regenerative in every mode: absorbed energy returns to the grid
- Modbus and Ethernet open protocol with LabVIEW drivers
What it is bought for
Each of these sets out the bus, the clause and where programs get caught out.
Where this sits in the range
5 of 7 by ceiling in AC Sources.
Every figure on this page is transcribed from DC ePlus datasheet, 2025 v1. A build gate re-checks each one against that document and fails the build if it is not there.
