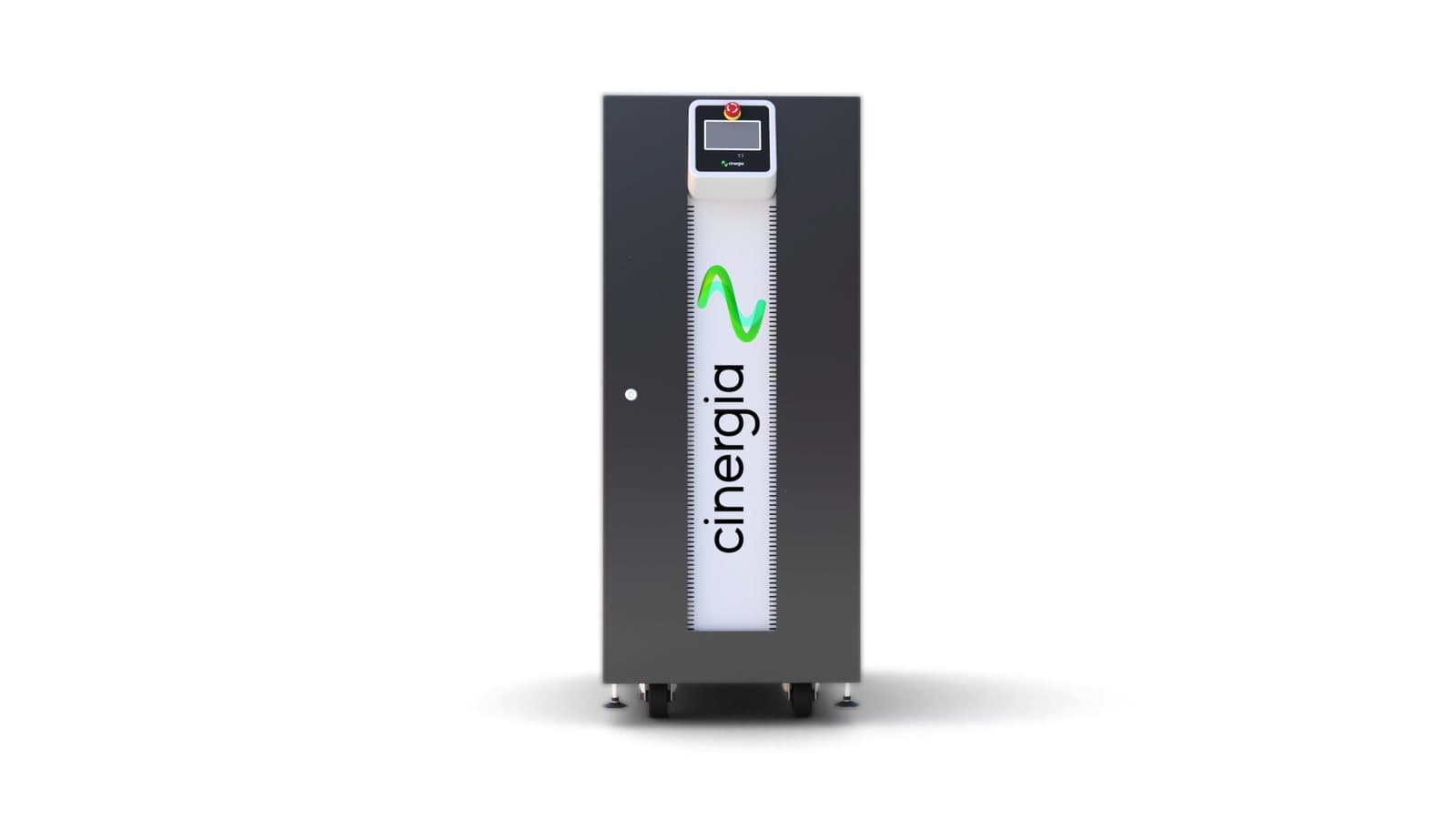

B2C+ Bi-Directional DC Converter
7.5 kW – over 1 MW paralleled
Manufactured by Cinergia · supplied and integrated by Intepro
Bi-directional DC converter from 7.5 kW to 160 kW per chassis, parallelable beyond 1 MW — sources and sinks, so it suits battery and drive work where energy flows both ways.
Datasheets and documents
Supplied and integrated by Intepro, which is Cinergia’s North American distributor. Manufactured by Cinergia. Specifications should be confirmed against the manufacturer’s current datasheet before quoting — revisions are theirs, not ours.
Output
| Output voltage | up to 800V (1500V with 2 units in series) |
|---|---|
| Output current | up to 555A per chassis |
| Phase | dc |
Input
| phase | 3 phase |
|---|---|
| voltage | 480V |
Capabilities
- 7.5kW to 160kW single chassis (30.3” D x 17.9” W x 43.3” H); parallelable beyond 1MW
- 30.3” D x 17.9” W x 43.3” H cabinet
- Bi-directional with regeneration efficiency up to 92%
- Max output 800V, 555A per chassis; 1500V by using 2 units in series
- AC input: 3 phase 480V
- Power factor correction >0.98 at rated power
- Operating efficiency >89-92%
- Ethernet interface; 4.3” touchscreen panel
- Function generator and auto-ranging output included; LabView VIs / SCPI support
What it is bought for
Each of these sets out the bus, the clause and where programs get caught out.
Where this sits in the range
7 of 7 by ceiling in DC Power Supplies.
