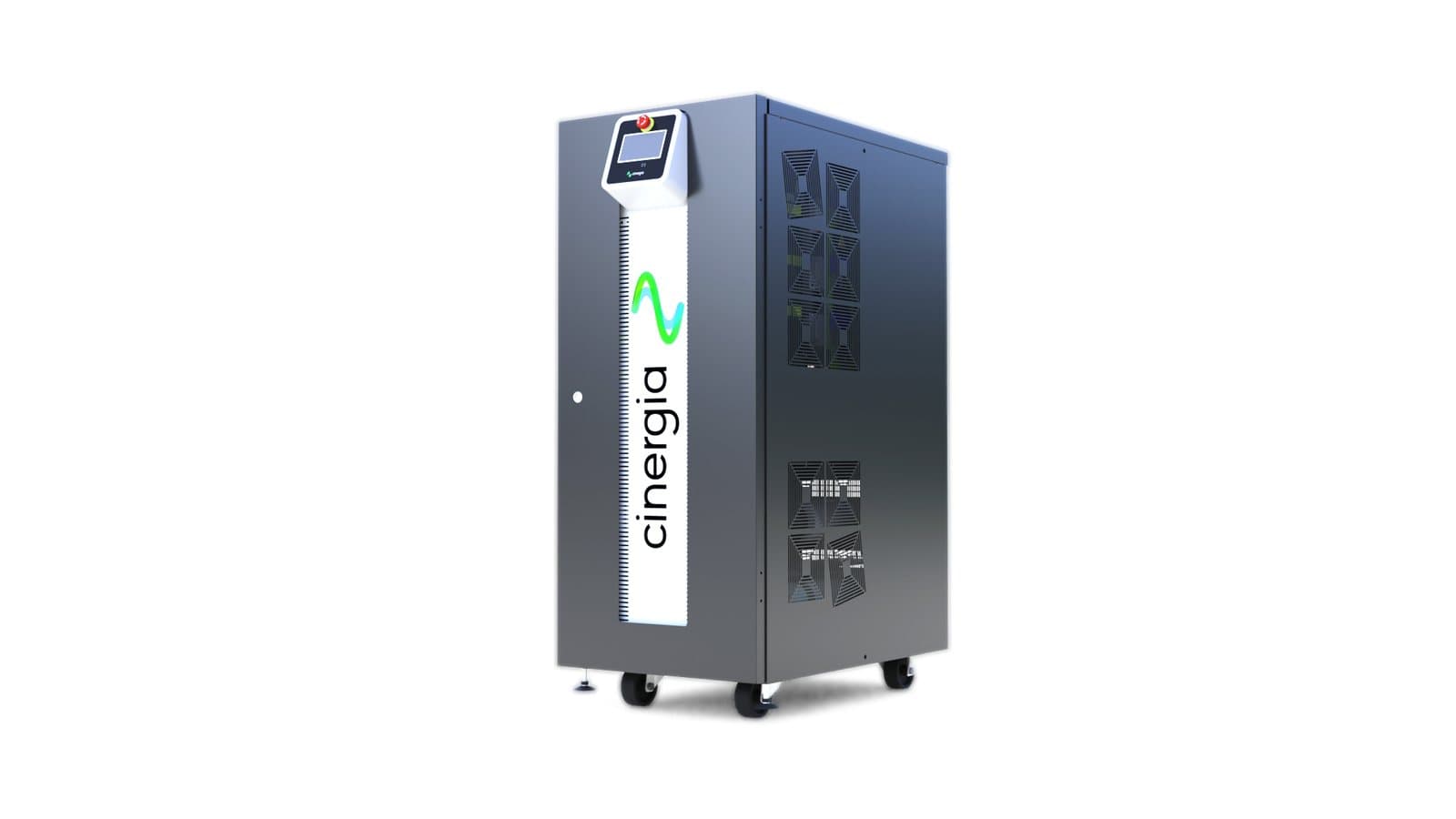

EL+ vAC/DC Regenerative AC and DC Electronic Load
7.5 kW – 160 kW
Manufactured by Cinergia · supplied and integrated by Intepro
Regenerative electronic load that sinks in AC and DC from one cabinet, 7.5kW to 160kW across 13 models, with an AC band reaching 400Hz. Absorbed energy returns to the grid instead of becoming heat.
Datasheets and documents
Supplied and integrated by Intepro, which is Cinergia’s North American distributor. Manufactured by Cinergia. Specifications should be confirmed against the manufacturer’s current datasheet before quoting — revisions are theirs, not ours.
Output
| Output voltage | AC 35 to 277Vrms phase-neutral, 35 to 480Vrms phase-phase (295Vrms and 510Vrms with the high-voltage option); DC 20 to 750V, 800V with the high-voltage option |
|---|---|
| Output frequency | 10 to 400Hz in AC |
| Output current | to 200% of rated current in AC; to 110% of rated current in DC |
| Phase | single / three / dc |
Input
| phase | 3 phase |
|---|---|
| voltage | 400Vrms |
| frequency | 48-62Hz |
Capabilities
- 13 models from 7.5kW to 160kW, parallelable to increase power
- Sinks in AC and DC from the same unit: CC, CV, CP, CR and CZ modes
- AC fundamental frequency 10 to 400Hz, so avionics work and mains work land on one instrument
- Harmonics up to the 50th, 50 independent harmonics per phase — 20 freely programmable in frequency and phase, 30 fixed
- Phase angle -90 to 90 degrees in sink or source, resolution 0.01 degrees
- Overload of 200% of rated power; non-linear currents to a crest factor of 3
- Grid-side current THDi below 3% and power factor above 0.98 at rated power
- Regenerative: absorbed energy is returned to the grid rather than dissipated
- Modbus and Ethernet open protocol with LabVIEW drivers
What it is bought for
Each of these sets out the bus, the clause and where programs get caught out.
Where this sits in the range
2 of 2 by ceiling in Electronic Loads.
Every figure on this page is transcribed from DC Full ePlus datasheet, 2025 v1. A build gate re-checks each one against that document and fails the build if it is not there.
