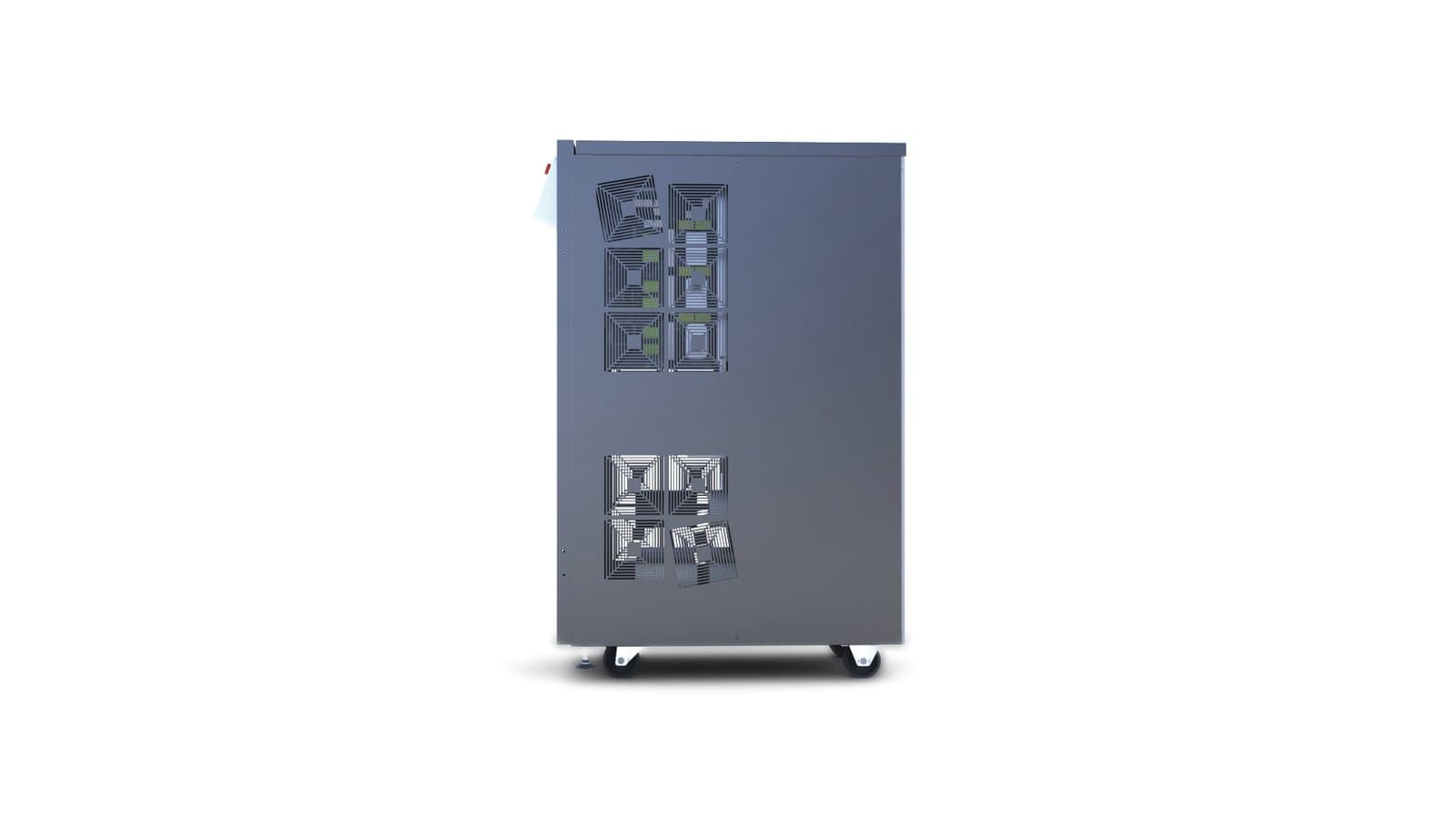

GE+ vAC/DC Regenerative Grid Emulator
7.5 kW – 160 kW
Manufactured by Cinergia · supplied and integrated by Intepro
Regenerative four-quadrant voltage source for grid-connected test, 7.5kW to 160kW across 13 models. Programs the supply a device will actually meet, then absorbs what the device sends back.
Download the datasheet
Supplied and integrated by Intepro, which is Cinergia’s North American distributor. Manufactured by Cinergia. Specifications should be confirmed against the manufacturer’s current datasheet before quoting — revisions are theirs, not ours.
Output
| Output voltage | AC to 277Vrms phase-neutral; DC output available from the same platform |
|---|---|
| Output frequency | 10 to 100Hz standard, 400Hz optional |
| Phase | single / three / dc |
Input
| phase | 3 phase |
|---|---|
| voltage | 400Vrms |
| frequency | 48-62Hz |
Capabilities
- 13 models from 7.5kW to 160kW
- Four-quadrant and regenerative: sources and sinks, so an inverter under test cannot push it off its own profile
- AC fundamental frequency 10 to 100Hz as standard, to 400Hz as an option
- Small-signal bandwidth to 5000Hz
- Generation of disturbances for grid-code and immunity work
- Grid-side current THDi below 3% and power factor above 0.98 at rated power
- Modbus and Ethernet open protocol with LabVIEW drivers
What it is bought for
Each of these sets out the bus, the clause and where programs get caught out.
Where this sits in the range
4 of 7 by ceiling in AC Sources.
Every figure on this page is transcribed from DC Full ePlus datasheet, 2025 v1. A build gate re-checks each one against that document and fails the build if it is not there.
